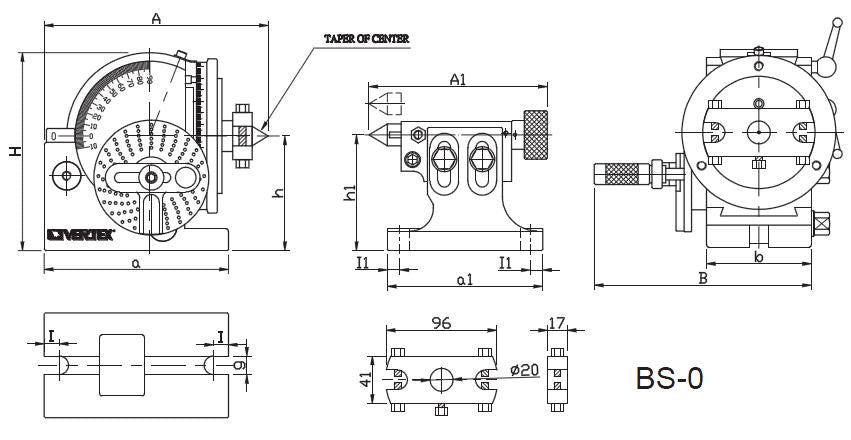

VERTEX Universal Dividing Head BS-0

VERTEX BS-0

  • Dividing Head can divide in any angle by the direct, in-direct, or different methods. The ratio between the warm and the warm gear is 40:1.
  • Hardened and ground spindle is rigidly held in a taper roller bearing.Worm is hardened and ground also.
  • The swivel head can be locked of any angle from 10˚ below horizontal to 90˚ vertical-precision fitting to base assures smooth rotation.

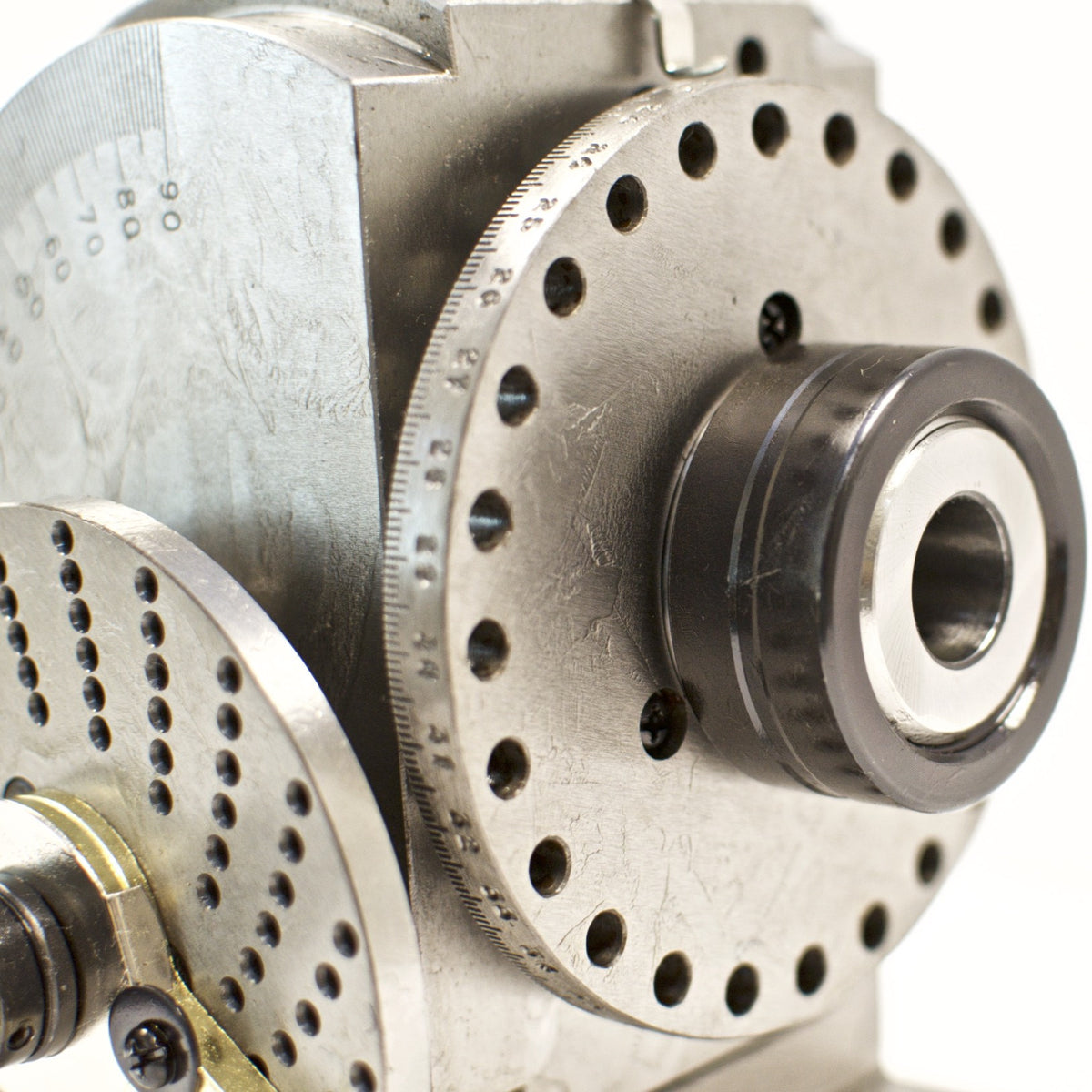

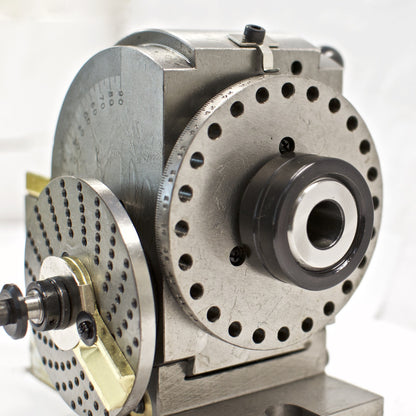

  • All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12, and 24.
  • Easy indexing of al numbers from 2 to 50 and many numbers from 52 of 380.
  • Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.
  • Spindle nose thread 1 1/2" 8TPI.

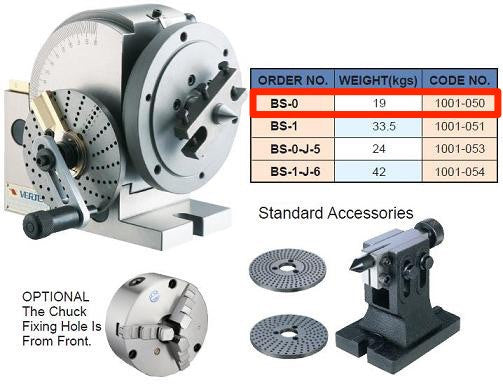

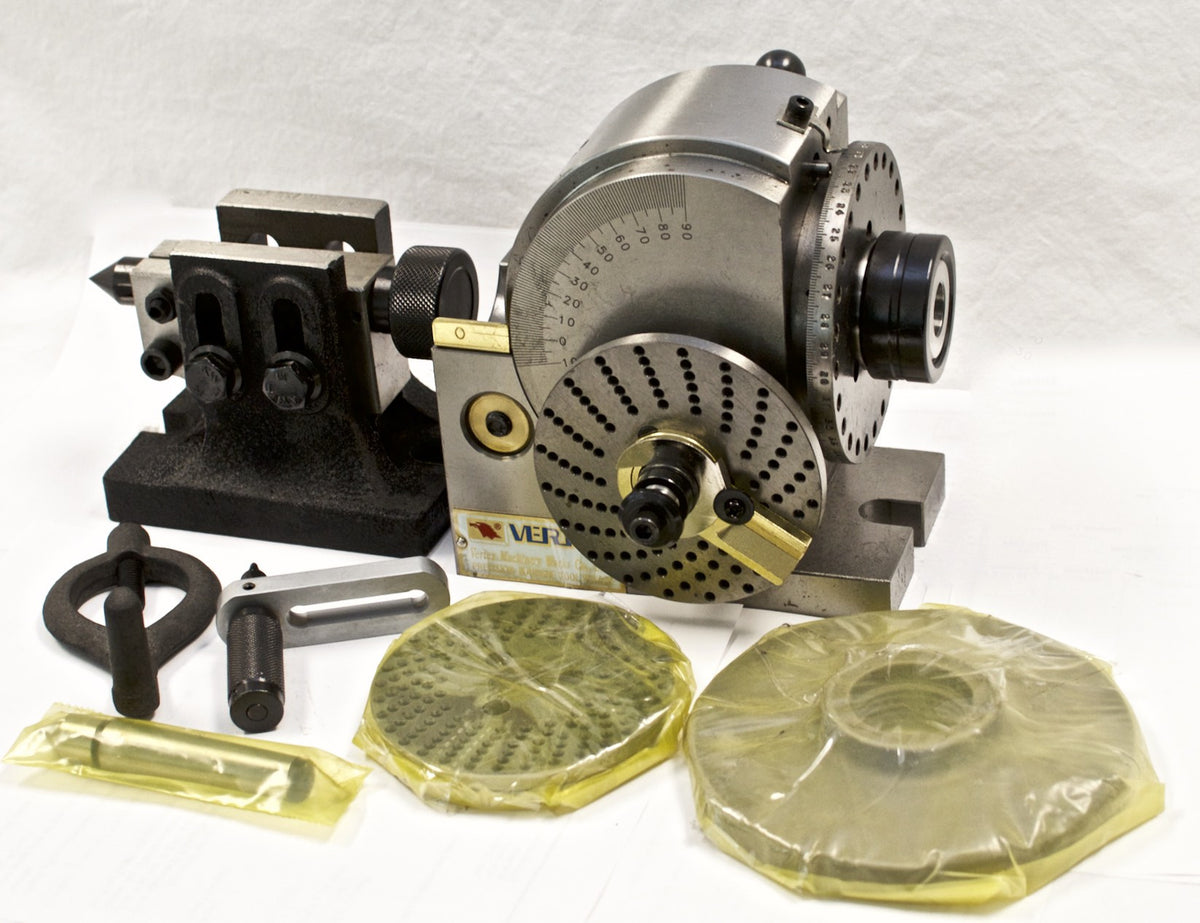

Listing Includes

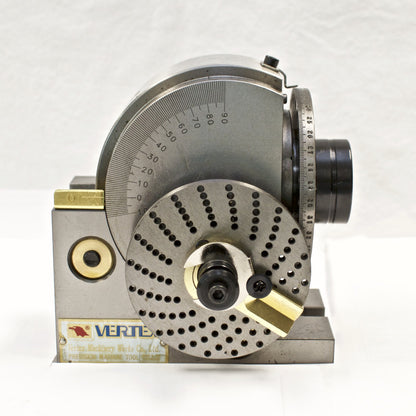

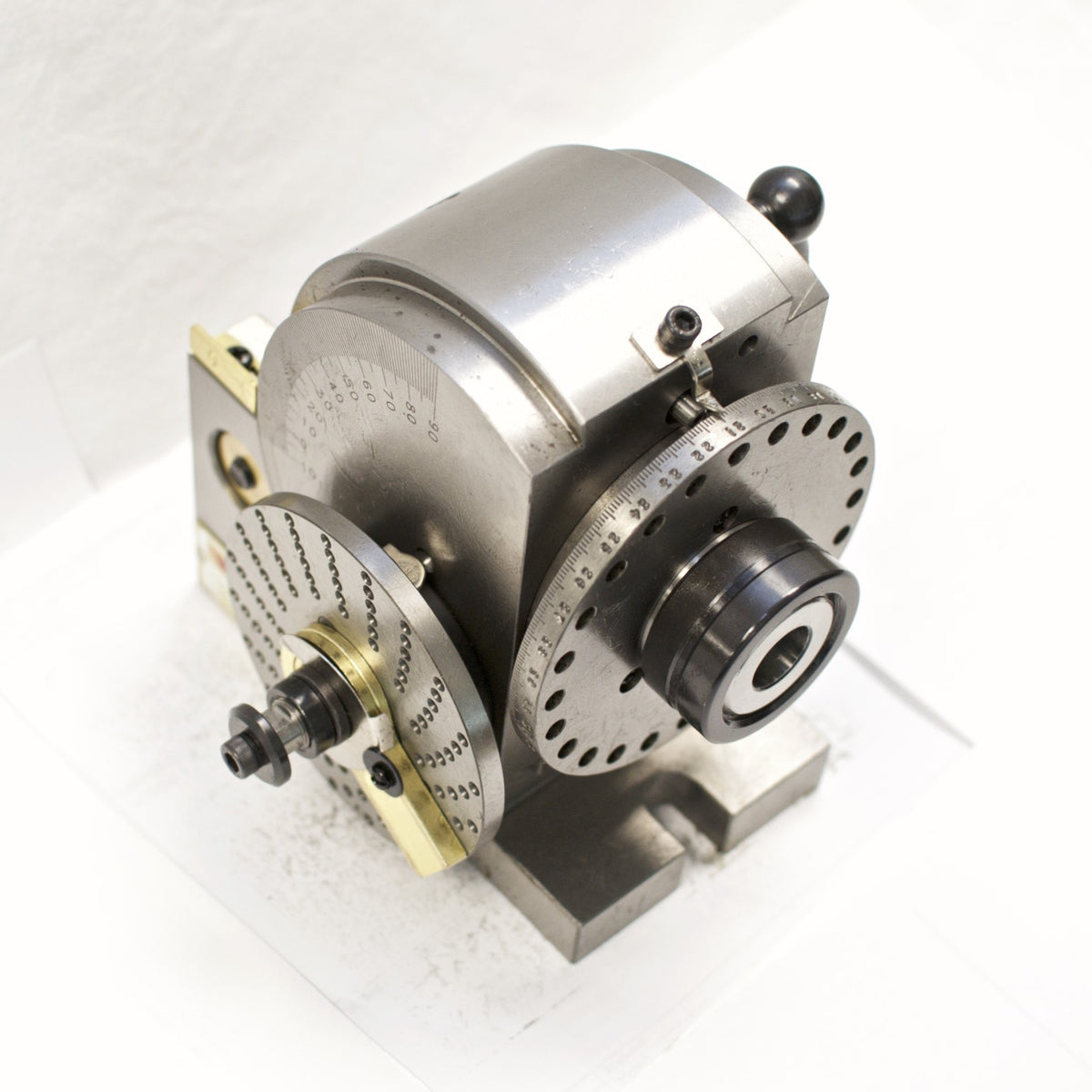

  1. BS-0 HeadStock

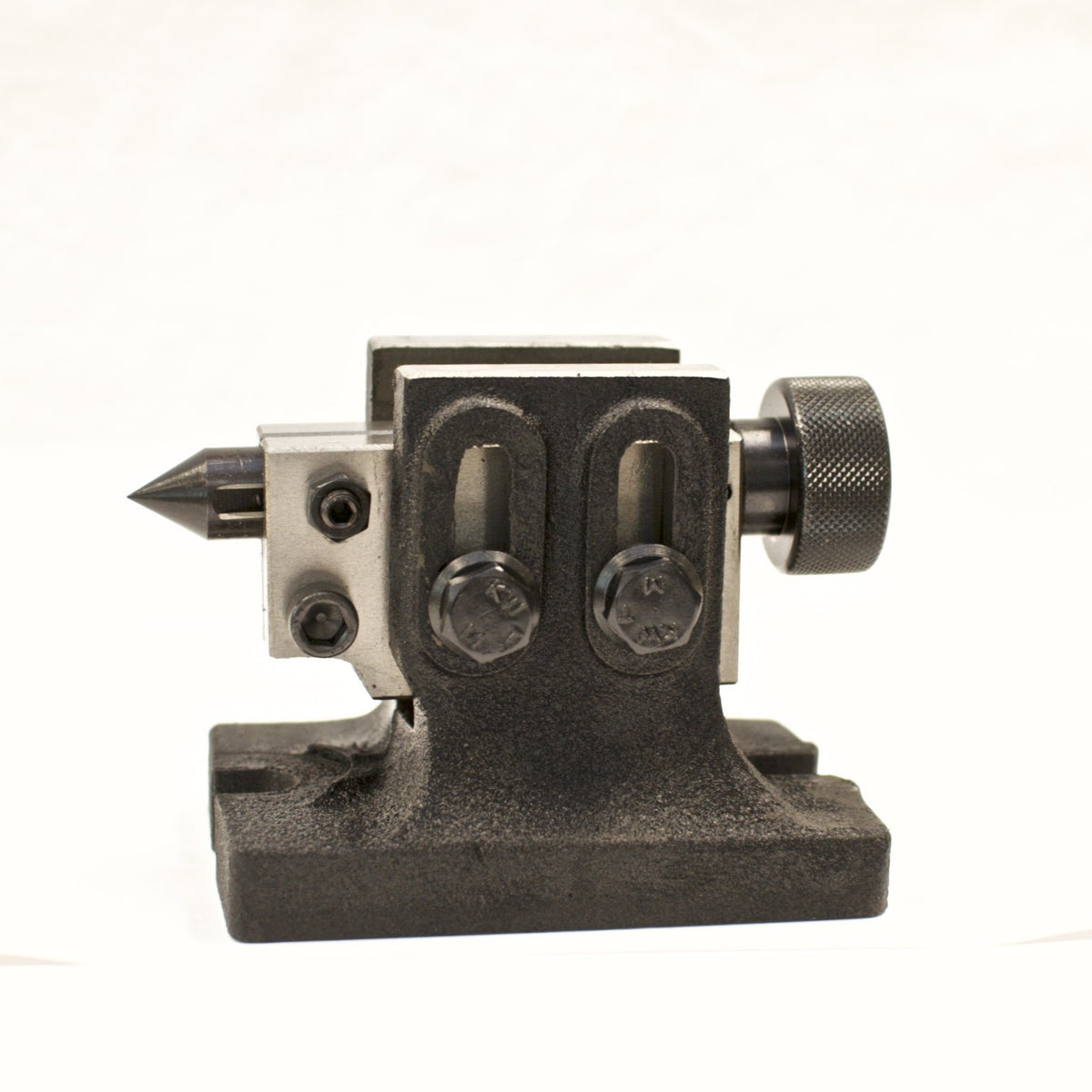

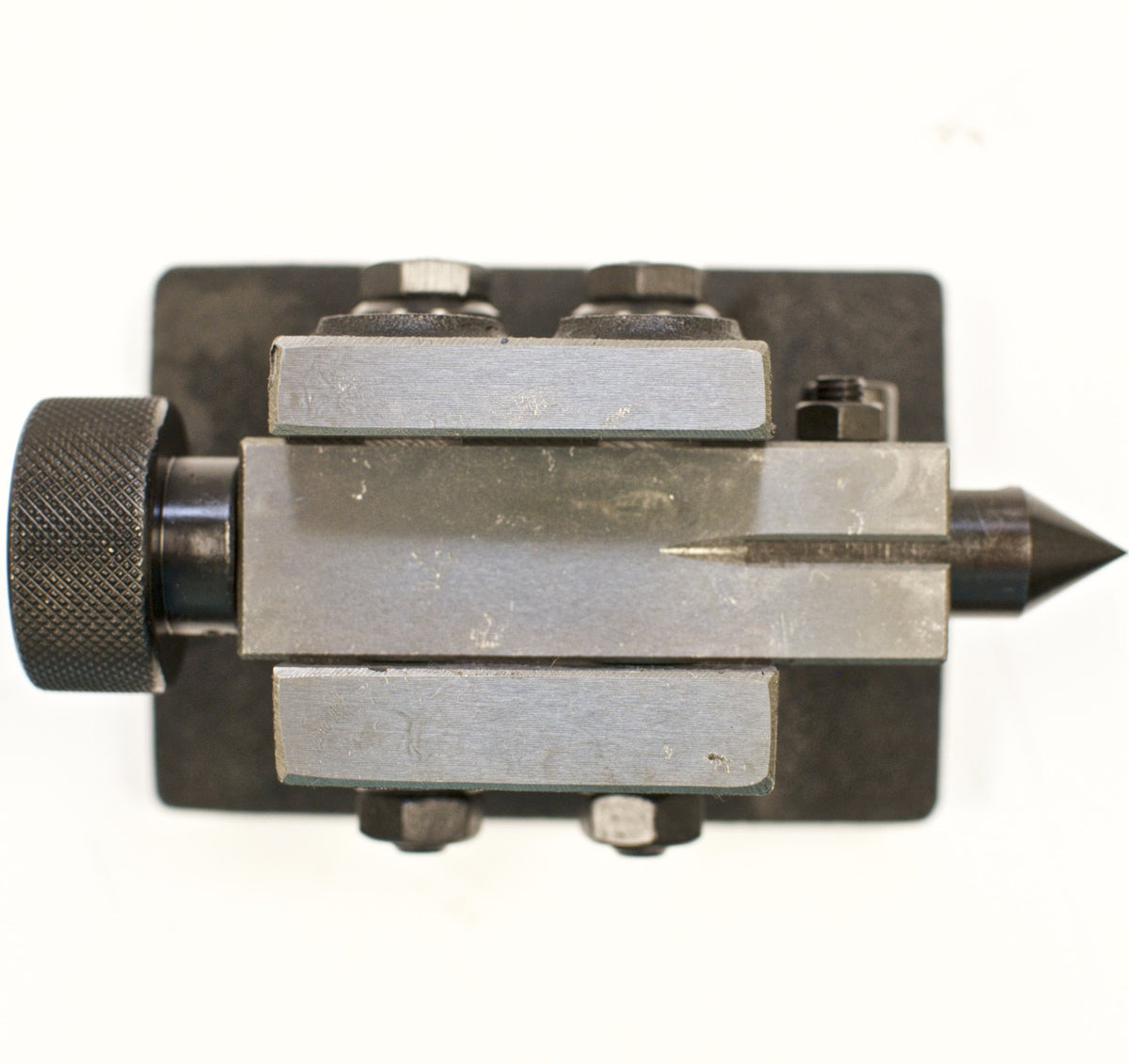

  2. BS-0 TS-1 TailStock

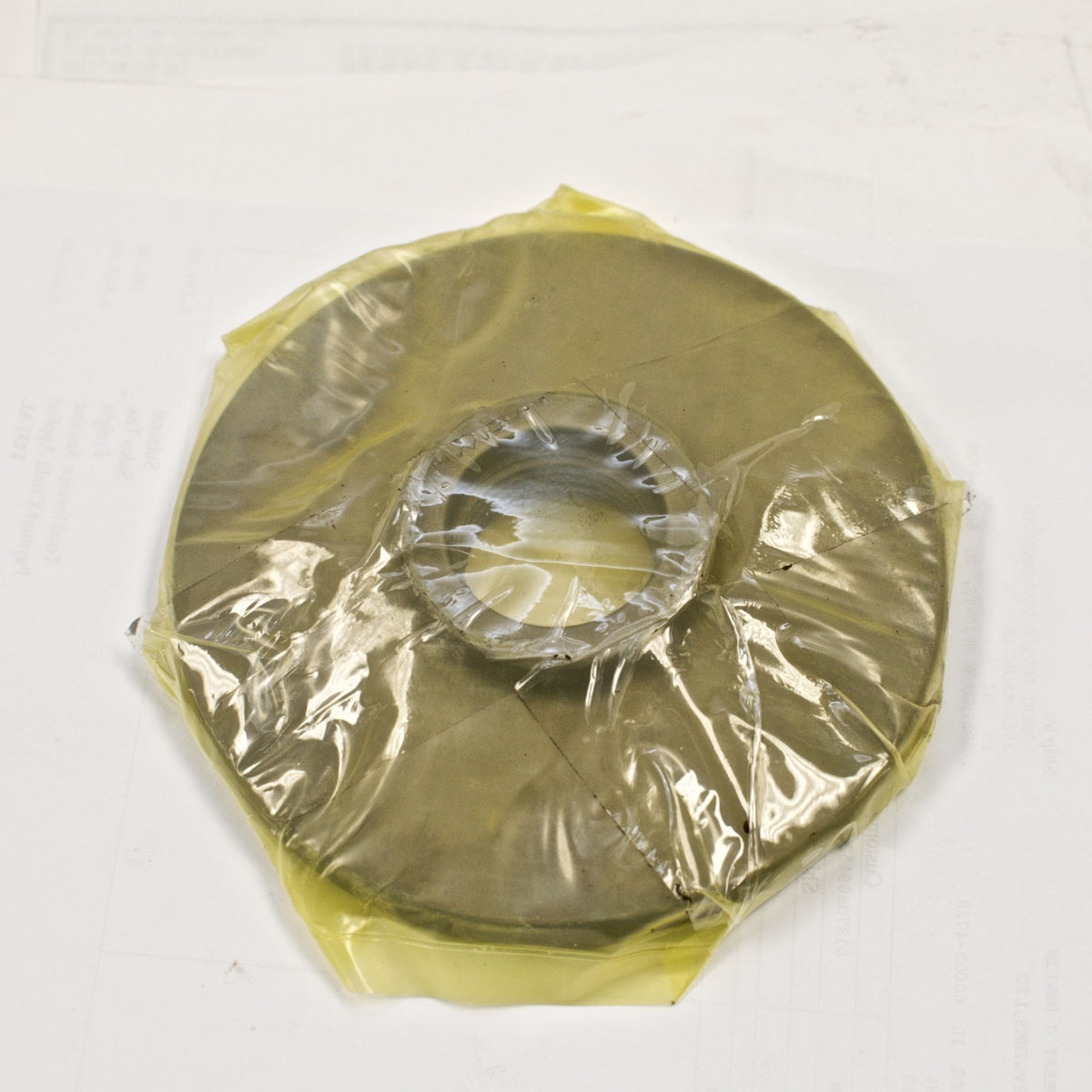

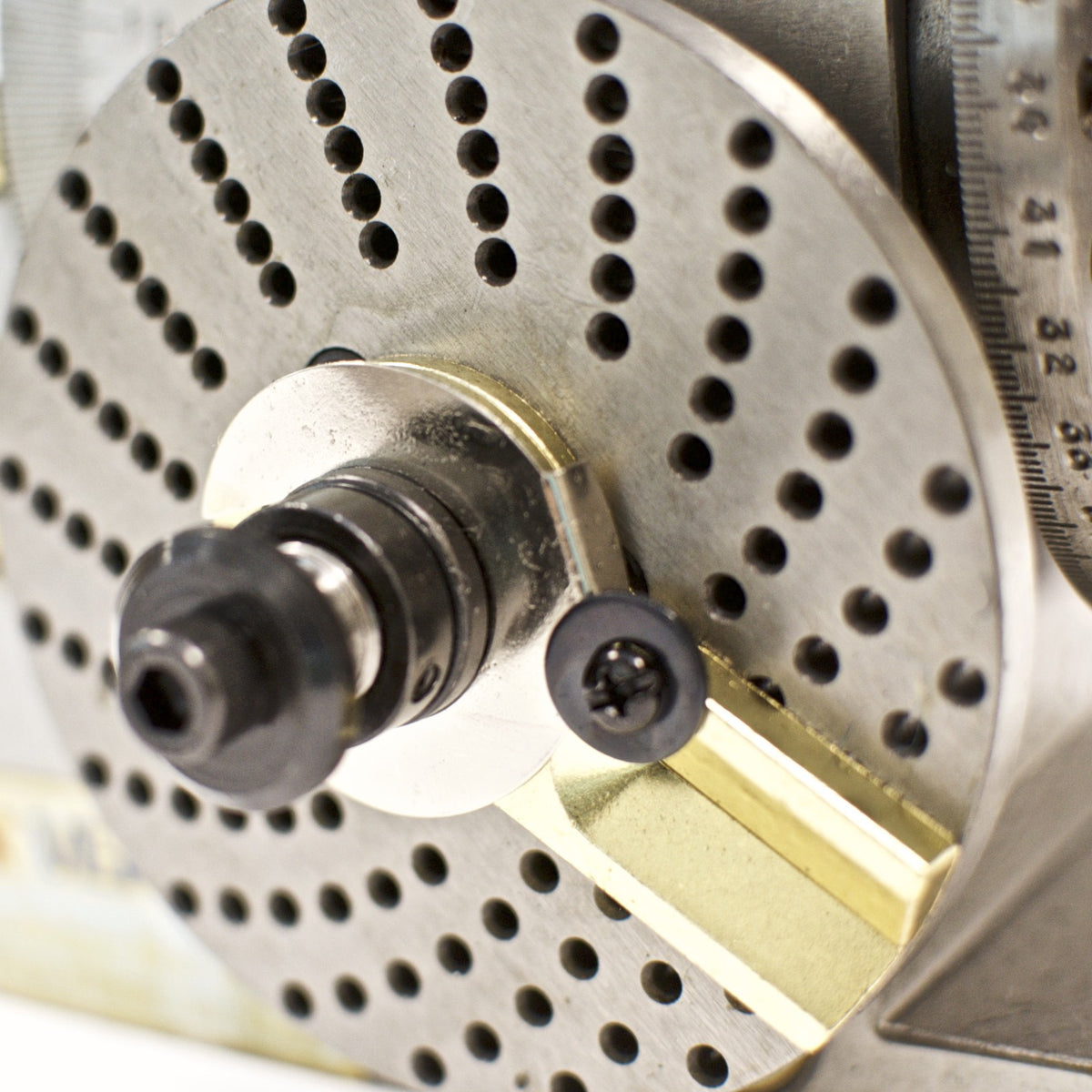

  3. DP-Dividing Plates for HV/CS Indexer
