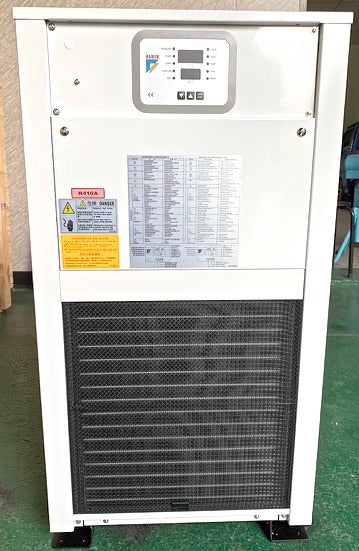

Spindle Oil Cooler, Oil Chiller for CNC, 12000 BTU, HABOR HBO-750PSB, 220V, 3PH

Eisen Machinery Inc

$ 4,395.00

Commonly used on CNC machining center to cooling spindle oil, hydraulic oil or lubrication oil.

HABOR Oil Chiller Model: HBO-750PSB


  • Can be used to chill machining center spindle oil, hydraulic oil or machine lubrication oil.
  • Stabilize temperature and improve cutting accuracy
  • Prolong machine life.
  • Simple operation, low noise.


Model: HBO-750PSB
Cooling capacity: 3000 kcal/hour, 3500 watt, 12000 BTU/hour

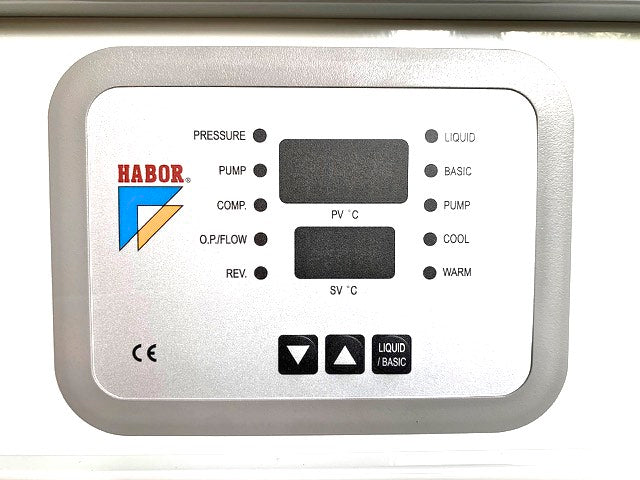

Temperate control:

Differential temperature control type (tracing ambient/machine body temperature, setting range -9.9~+9.9℃

Usage range: Ambient temperature 10~40 deg C, Oil temperature 10~45 deg C
Power input: 3PH 200~230V 60Hz 10.5A
Compressor motor: 1185 w
Fan motor: 180 watt
Pump: 400 watt
Pump flow rate: 20 liter / min
Inlet size: 1" PT
Outlet size: 1" PT
Max. pressure loss of oil outlet: 3.0 kgf/cm^2
Oil viscosity requirement: hydraulic oil and lubrication oil VG6 ~VG32 (4~300 cSt)
Refrigerant: R410A 1.0kg

Oil type requirement

This unit accepts mineral hydraulic oil and lubrication oil.
Do not use phosphate, chlorinated hydrocarbon and fire resistant hydraulic oil such as water/glycol oil and W/O, O/W emulsion type oil.
Do not use cutting oil, grinding oil or water soluble liquid.
Do not use for food stuff, medicine or strongly corrosive liquid.
Do not use for gasoline, kerosine or organic solvent.

Oil viscosity

The recommended oil viscosity for this unit is 4 to 300 CST.
For each ISO oil grade the oil viscosity actually varies depending on temperature.
As a general guide, if oil is between 10 to 40 deg Celsius, ISO VG5 to ISO VG32 can be used.
If oil is between 20 to 40 degree Celsius, then ISO VG5 to ISO VG68 can be used.

Please ask us any questions you have about the operation of this oil chiller. We'll be happy to help.

Please ask us for shipping quote. Please let us know 1) Your zip code 2) Whether you have forklift or loading dock to unload? 3) Is the location in a residential area?
