EISEN 2233GVS Engine Lathe with EVS, FAGOR DRO, TTA, 3.3" Bore, 15HP

Eisen Machinery

$ 22,500.00 $ 32,158.75

Click here to be notified by email when this product becomes available.

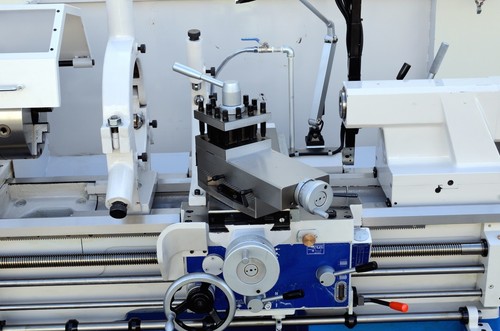

EISEN 2233GVS Fully Loaded Engine Lathe with EVS, FAGOR DRO, TTA, 3.3" Bore, 15HP

EISEN 2233GVS Precision Engine Lathe with 3" Spindle Hole and EVS

Large 22” swing diameter with only 33” distance between center. Space saving.




  • Large spindle through hole allows larger diameter parts than the competition.
  • Precision NSK and SKF bearings installed on spindle to ensure accuracy and rigidity for heavy cutting.

Fully loaded

3-jaw, 4-jaw chuck, taper turning attachment and digital readout are all included with machine.


  • Heat treated and precision ground alloy gears.
  • Wear-resistant phosphor bronze lead screw nuts.

Cone clutch

  • Cone clutch overload device in apron to ensure safety when operating.

Two-speed tailstock

  • Choose between fast movement or fine control with the optional two-speed tailstock.


  • Oil bath lubrication for cross feedscrew & nuts provide extra degree of protection and prolong service life.

Meehanite casting

  • Heat treated Meehanite casting bed. Hardness of bed reaching HS70 (approx. HRC 53)
  • One-piece base combines high rigidity and good vibration dampening characteristic.


  • Universal gearbox for both inch and metric threading — conversion table is also included.
  • High-capacity coolant system offers ample coolant output.


440V 3-phase. 220V transformer can be provided on request.

Productivity package includes:

  • 3-Jaw scroll chuck (STRONG SC-10)
  • 4-Jaw independent chuck (KC 14” D1-8)
  • Steady rest with rollers
  • Follow rest
  • 4-way tool post
  • Taper turning attachment (in a crate, not installed on machine)
  • Digital Readout (FAGOR 20iTv)
  • Work light (Halogen 24V 50W)
  • Centers
  • Chuck guard
  • Rear splash guard
  • Coolant system (1/8HP)
  • Auto-feed stopper rings
  • Tool box & manual

    Freight Shipping

    To ship by flat-bed truck, please let us know your zip code for shipping quote. Must have fork lift to unload machine.


    If you have any questions, please let us know we’ll be happy to help.
