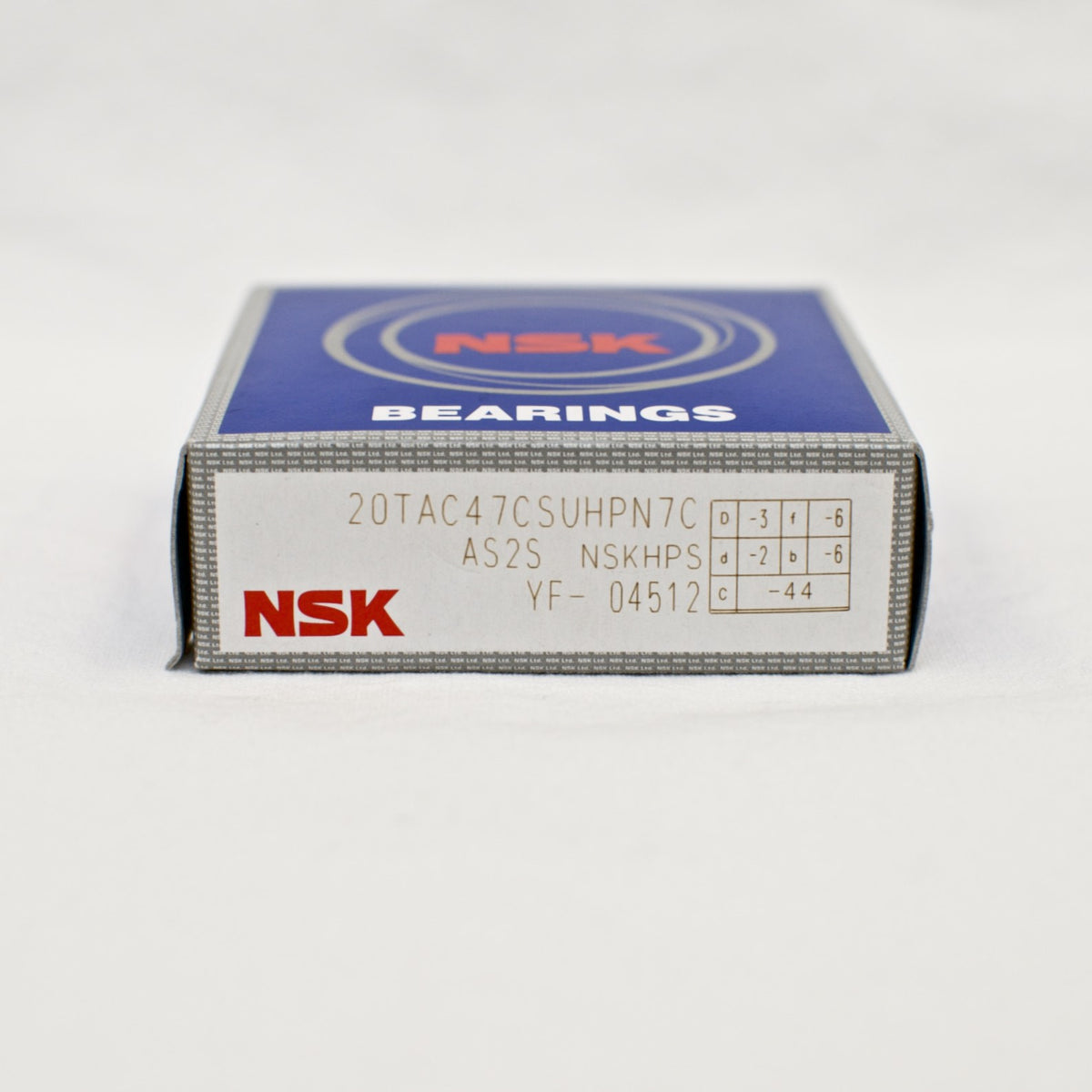

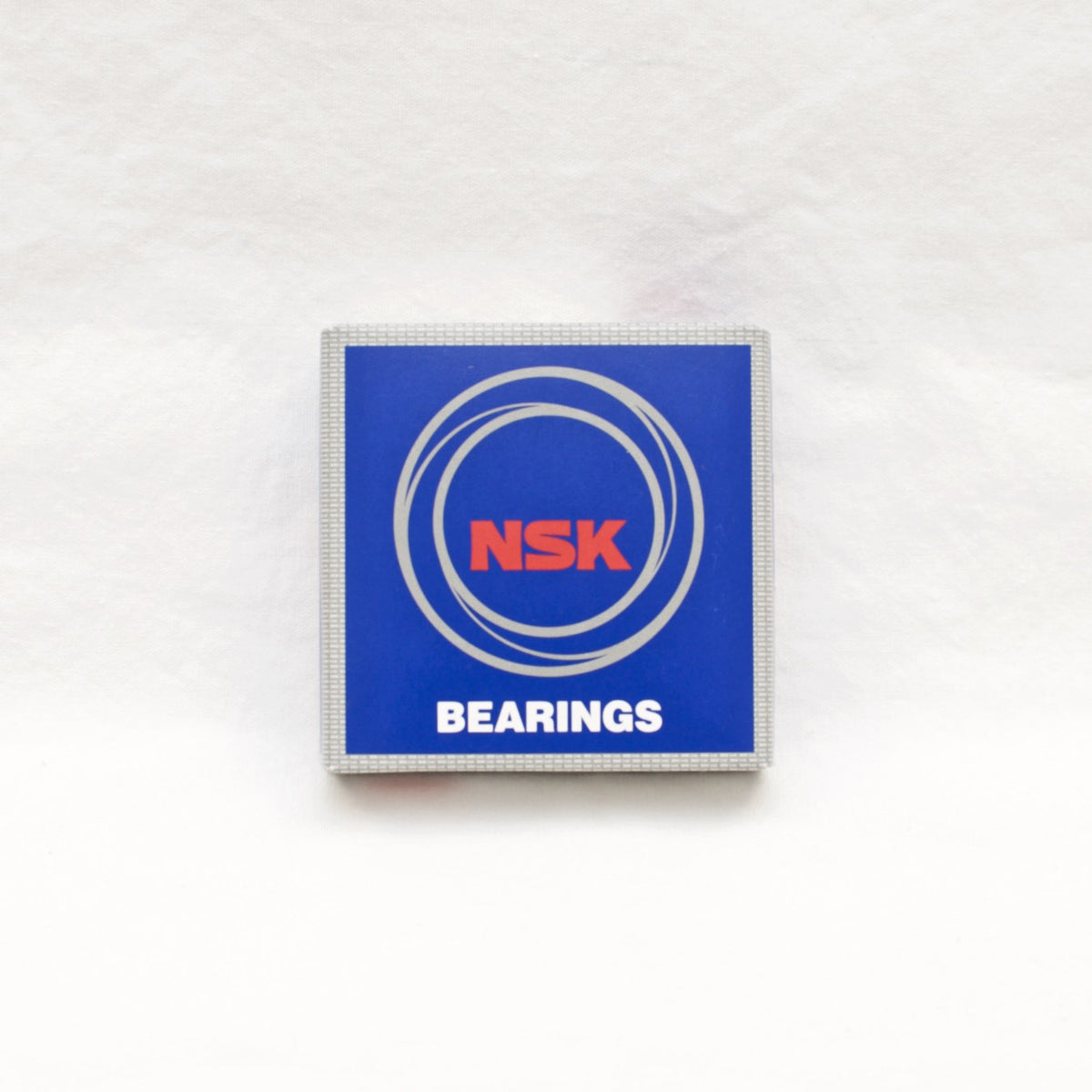

NSK 20TAC47CSUHPN7C CNC ballscrew support bearing (ref 20TAC47BSUC10PN7B)

NSK


$ 72.00


Click here to be notified by email when this product becomes available.


New in Box. In stock in USA.

NSK 20TAC47CSUHPN7C

Ballscrew support bearing for CNC machines

LATEST GENERATION from NSK
Supersedes 20TAC47BSUC10PN7B
The new version increases life by 15%.
Universal matching

Dimensions: 20x47x15

Ballscrew Support Bearing made of high purity EP-steel for extra high precision and rigidity

Lineup of high rigidity series and high load series specially designed to suit the application. It is suitable for high-precision feed mechanism.

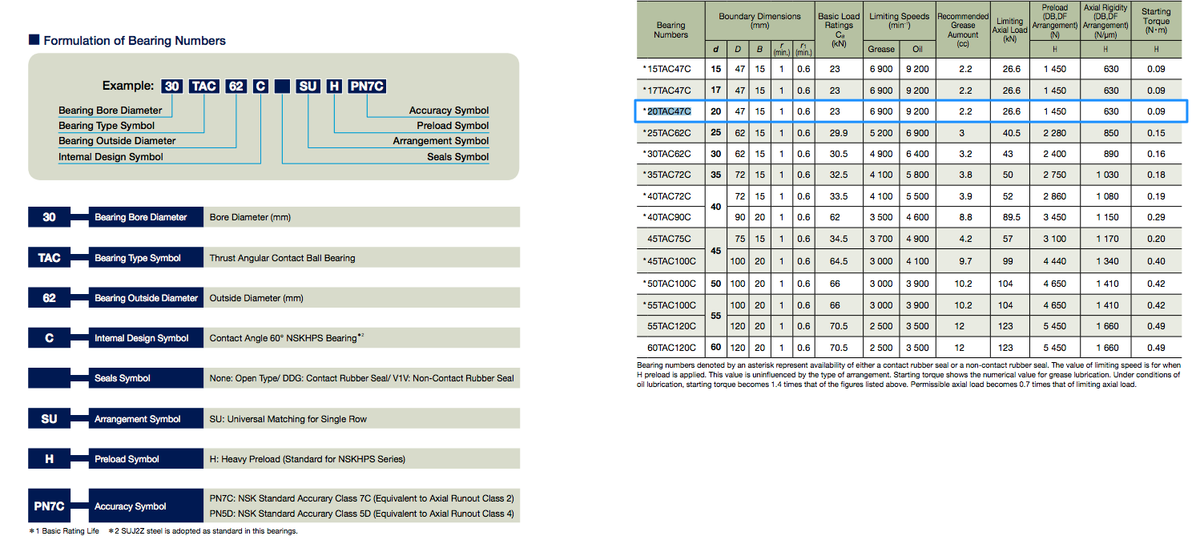

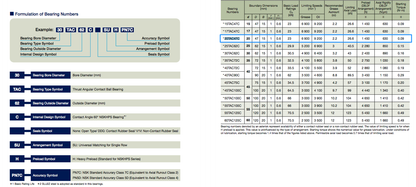

TAC: angular contact thrust ball bearing; 60 degree contact angle

C: NSK internal design code

SU: single-row universal arrangement

H: Heavy pre-load (standard for NSKHPS series)

PN7C: ISO class 2 / P2.

Price is for 1 bearing.

People usually order 2 at a time.
