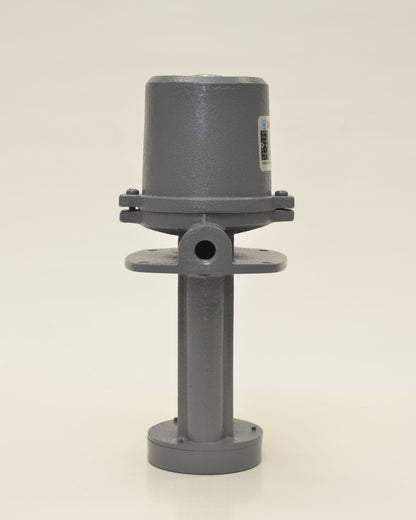

1/8 HP Machinery Coolant Pump, 110/220V, 1PH, 150mm (6") Shaft

YC


$ 105.00


Click here to be notified by email when this product becomes available.

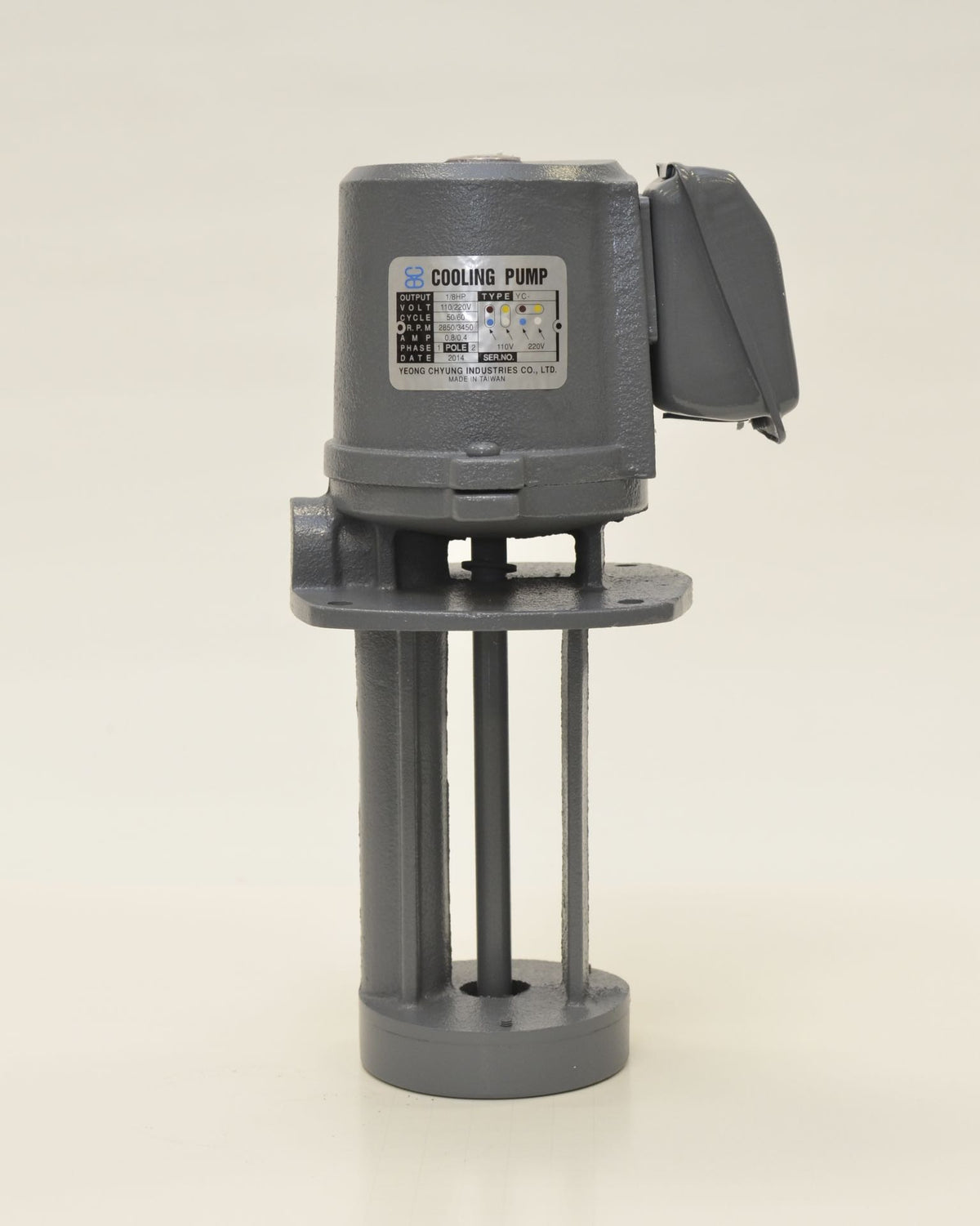

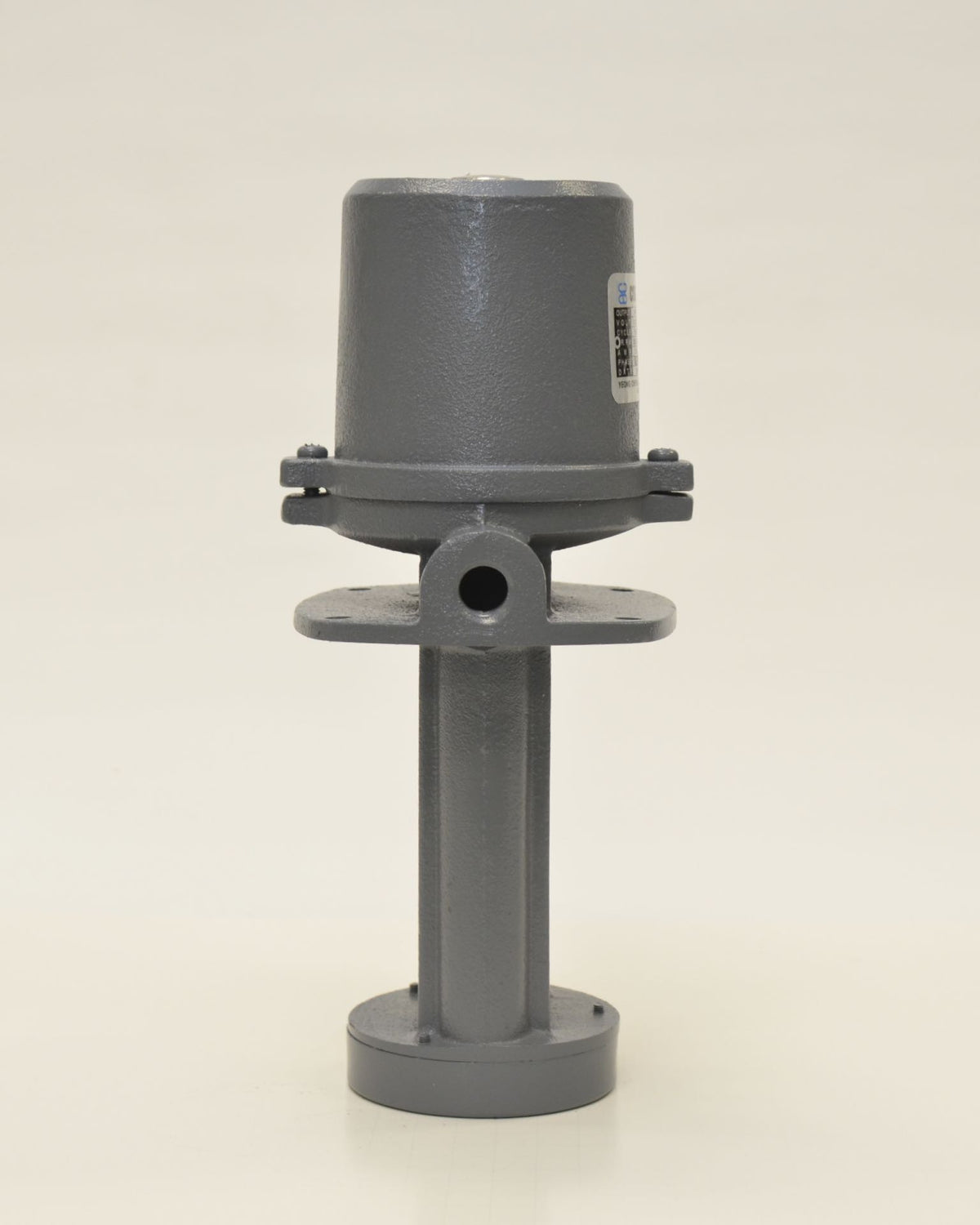

1/8 HP SINGLE-PHASE Cast Iron Immersion-Type Coolant Pump

This in-tank coolant pump is suitable replacement for many coolant pumps used on lathes, milling machines, grinders and other machinery.

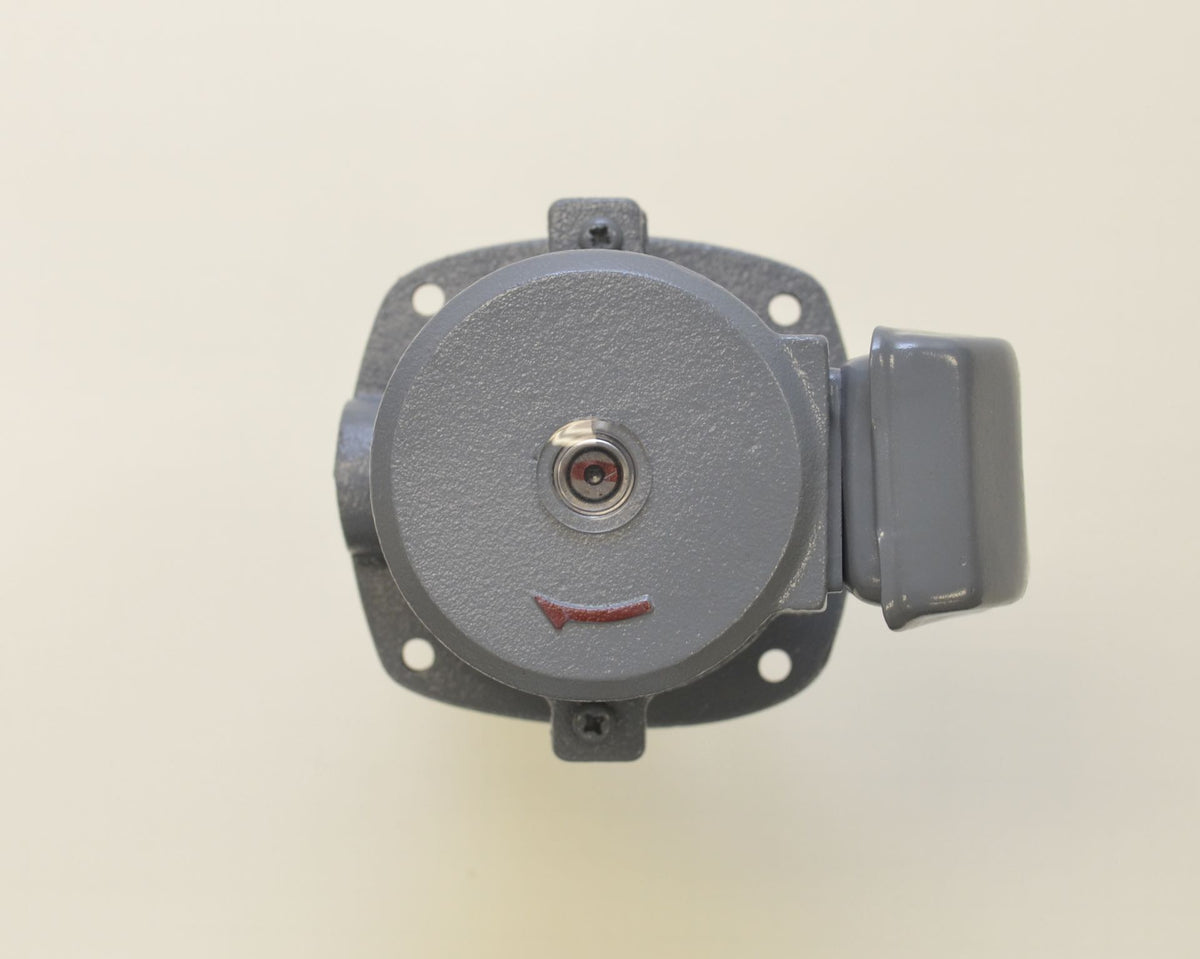

The square mounting flange has 4 holes.

The center to center distance for the holes is 90mm. Hole diameter is 8mm.

A quick comparison with your coolant pump would determine if it'll fit.

Coolant output connection is NPT female 3/8" pipe size.

Shaft length (the section immersed in coolant tank) is 150mm (6").

110/220V SINGLE-PHASE

By default, wired for 220V.

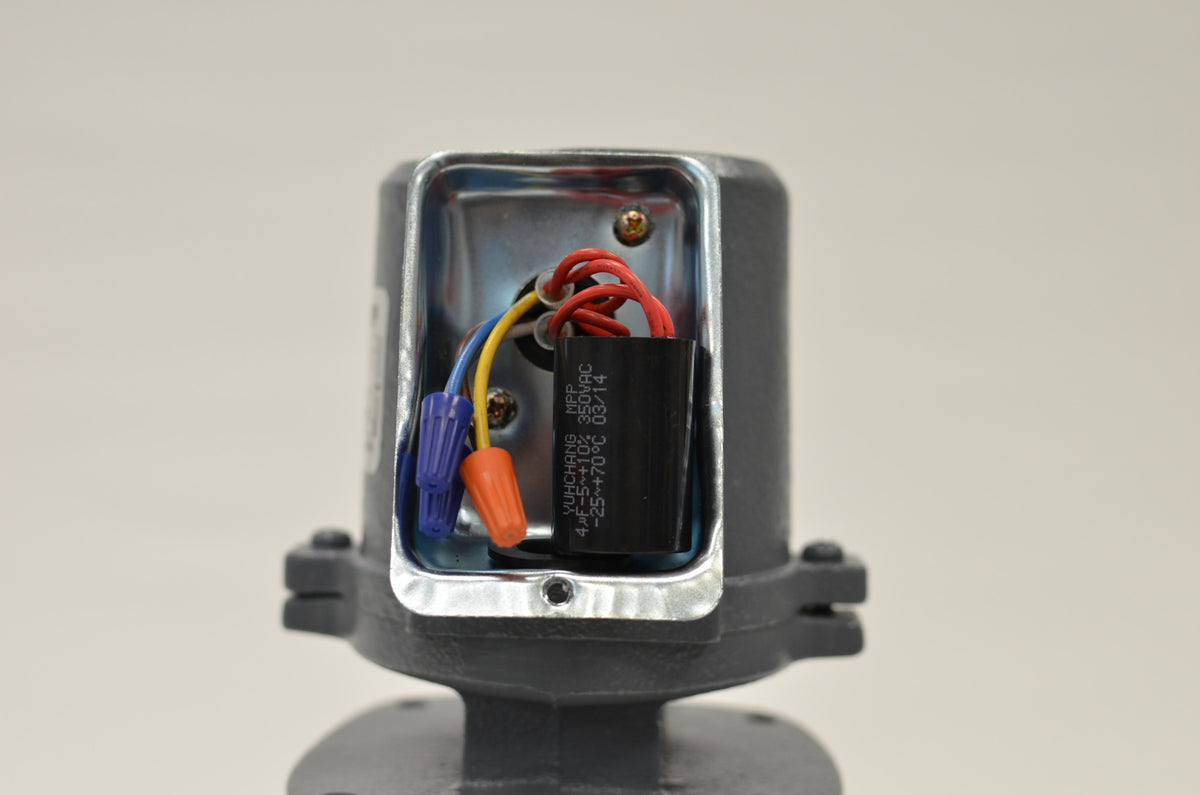

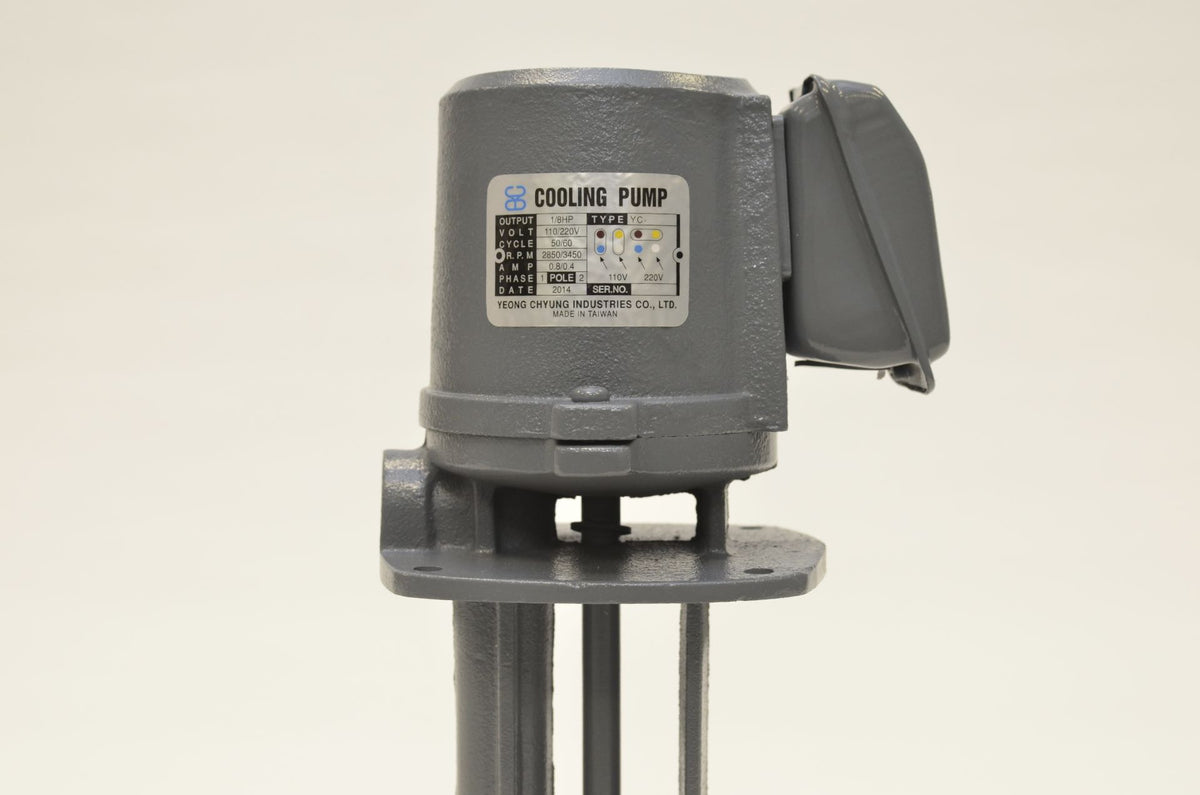

The motor plate has diagram that shows how to wire for 110V.


Made in Taiwan.
