1/8 HP Cast Iron Immersion Coolant Pump, 220V/440V, 3PH, Shaft Length 6" YC


$ 195.00

Click here to be notified by email when this product becomes available.

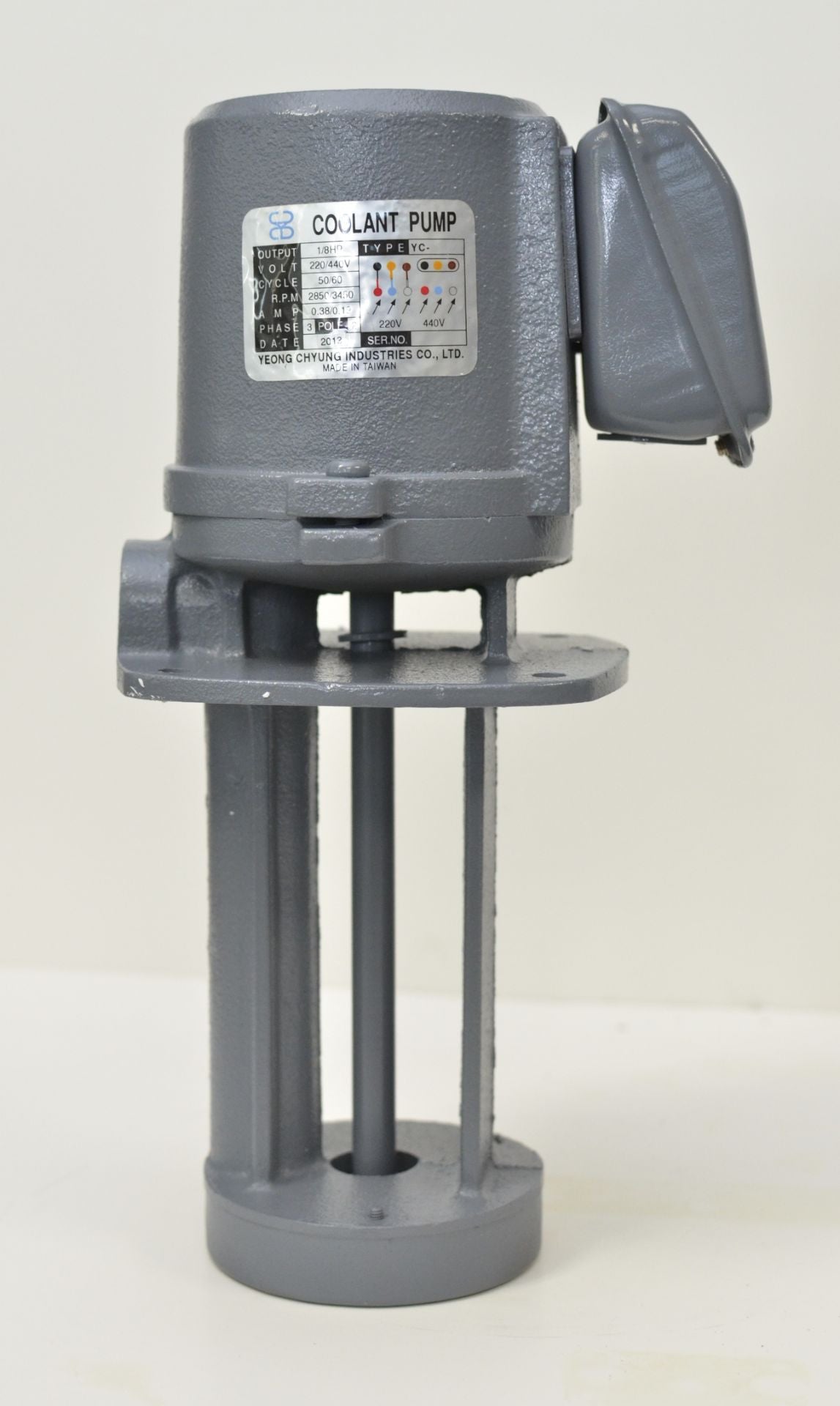

1/8 HP Cast Iron Immersion-Type Coolant Pump YC

This in-tank coolant pump is suitable replacement for many coolant pumps used on lathes, milling machines, grinders and other machinery.

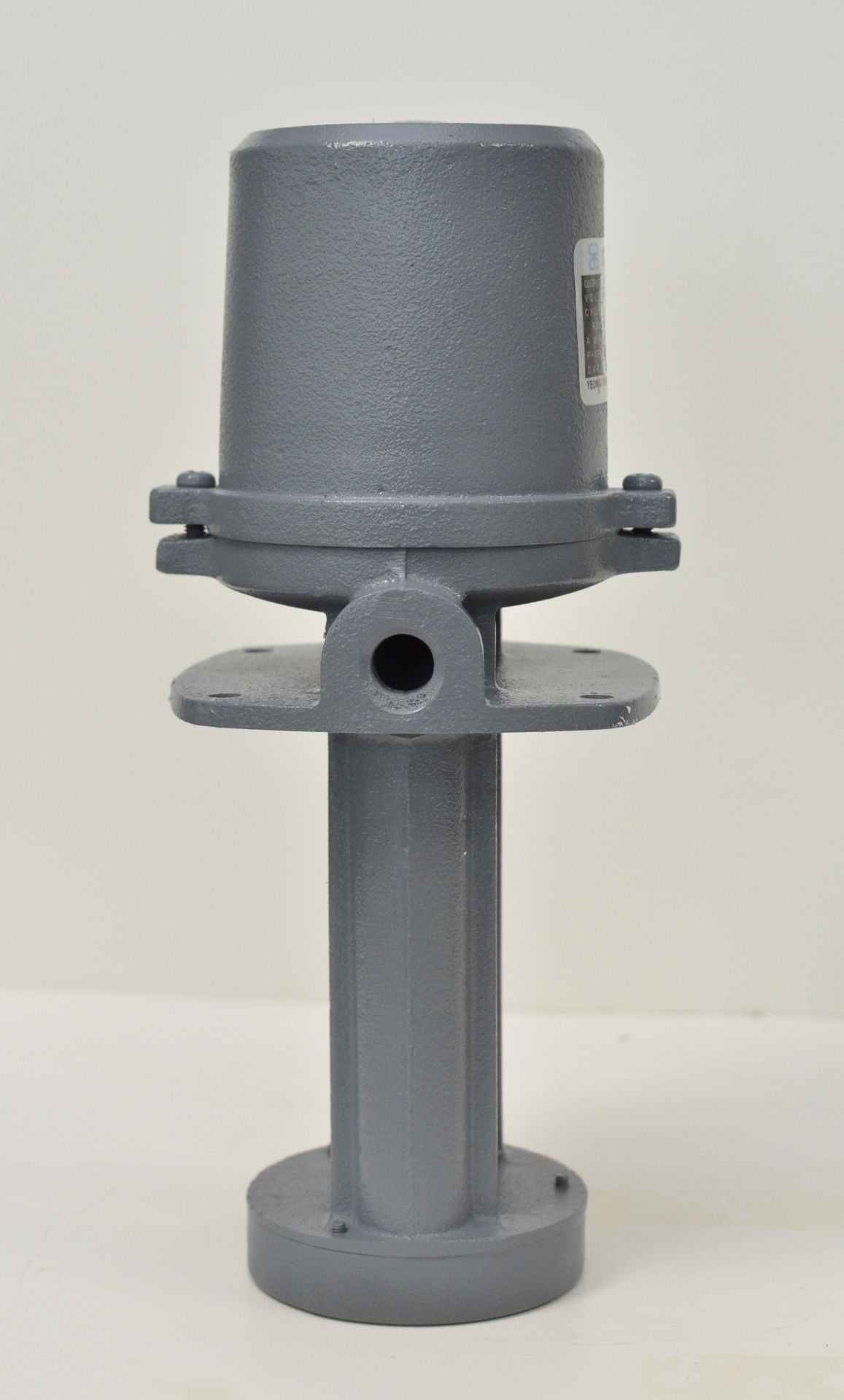

The square-shaped mounting plate has 4 holes. The center to center distance for the holes is 90mm. A quick comparison with your coolant pump would determine if it'll fit.

Coolant output connection is NPT female 3/8" pipe size.

Shaft length (the section immersed in coolant tank) is 6".

Can be wired for either 220 or 440V, 3phase.

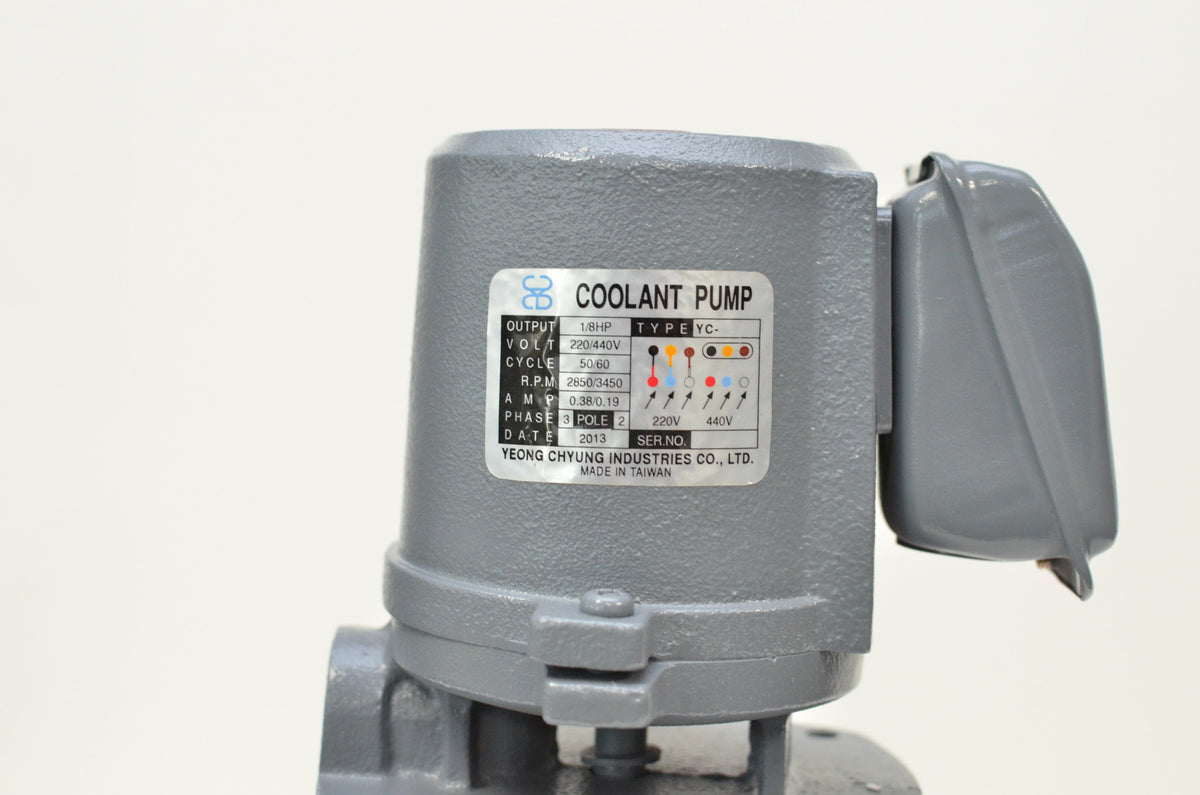

Out the factory, it's wired for 220V. Can be wired to 440 by placing a jumper at the wiring terminal. The motor plate has details.

Pressure: 7.11 psi (0.5 kg/cm^2)

Flow: 6.6 gpm

Made in Taiwan.
