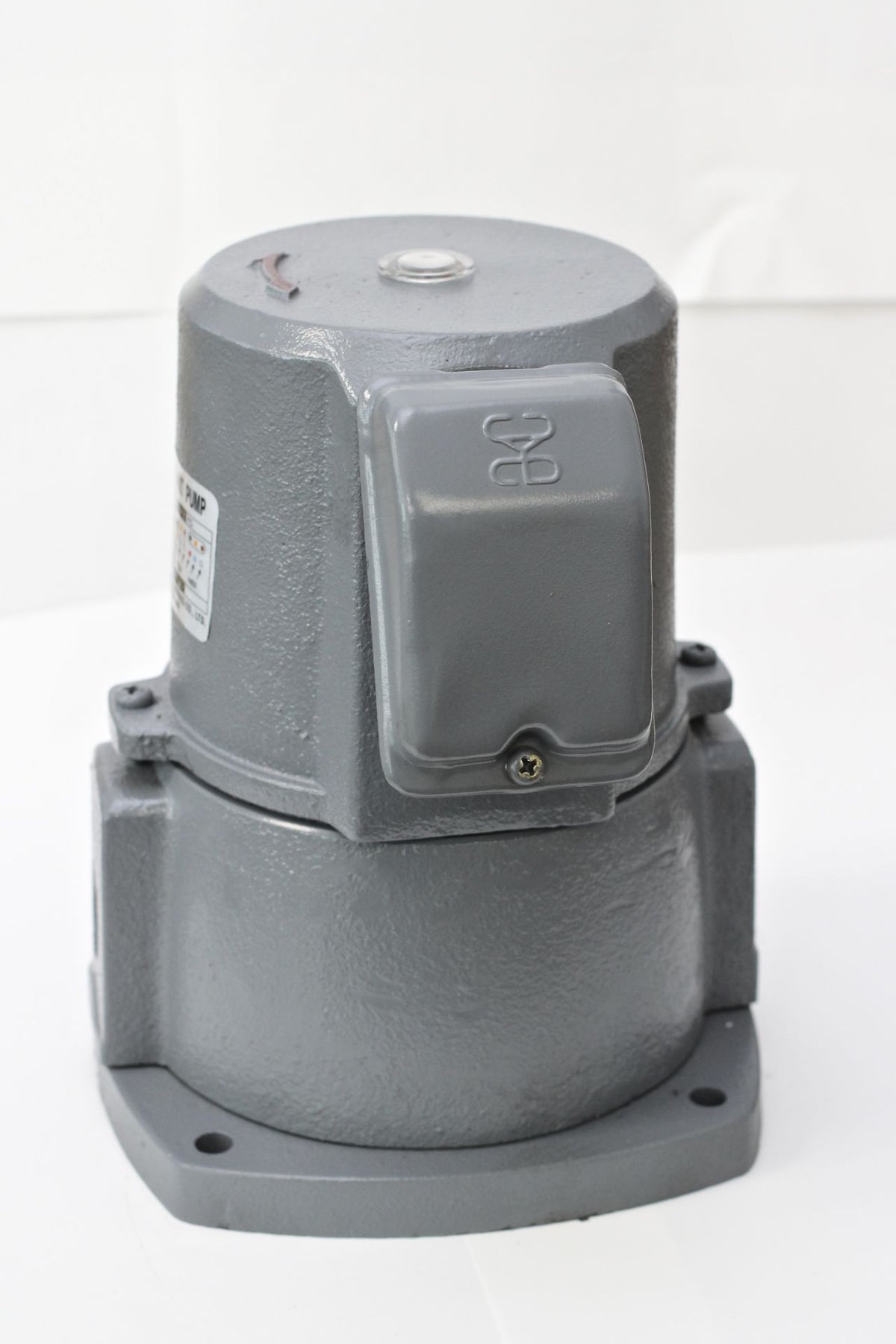

1/4 HP Cast Iron Suction-Type Coolant Pump, 220V/440V, 3PH, 1/2" NPT outlet YC

1/4 HP Cast Iron Suction-type Coolant Pump

This suction-type coolant pump is suitable replacement for many coolant pumps used on larger lathes, milling machines, grinders and other machinery.


Coolant inlet: NPT 3/4"
Coolant outlet: NPT 1/2"

Can be wired for either 220 or 440V, 3phase.
Out the factory, it's wired for 220V.
Can be wired to 440 by placing a jumper at the wiring terminal.

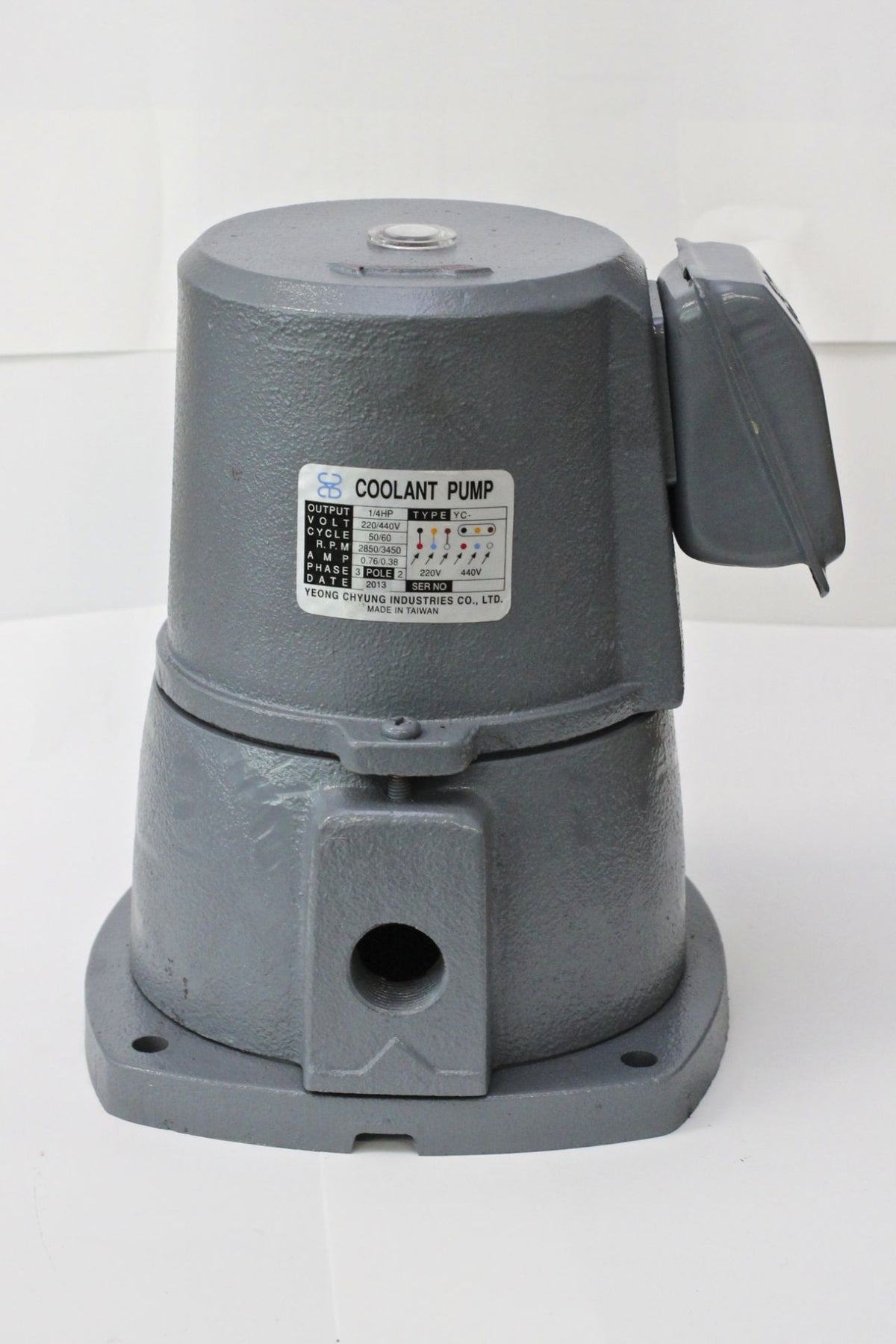

The motor plate has details.


Made in Taiwan.
