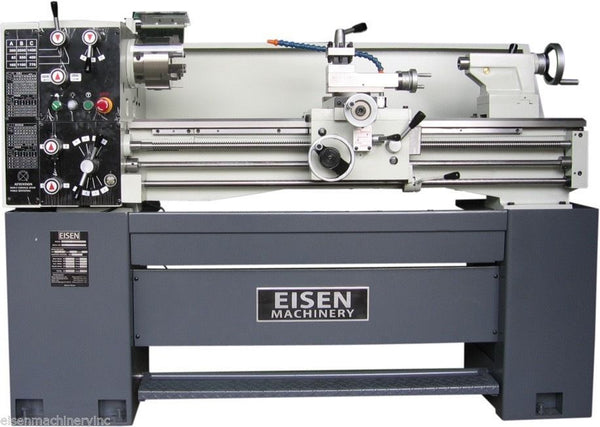

EISEN 1440E 14" x 40" Engine Lathe with DRO, Made in Taiwan, 220V 3PH

Eisen Machinery


$ 13,185.00


Click here to be notified by email when this product becomes available.


-NEW- Eisen 1440E Precision Engine Lathe

High quality precision lathe, Made in Taiwan.

Features

  • 14" swing x 40" distance between centers
  • Hardened and ground bed ways
  • Hardened and ground gears in headstock
  • D1-4 camlock spindle with 1 9/16" spindle bore
  • Spindle speed up to 2,000 RPM
  • 3 HP main motor
  • Precision taper roller bearings in spindle
  • Rapid foot-operated brake
  • Oil bath headstock, gearbox and apron lubrication

PLEASE NOTE: the taper turning attachment (TTA) shown in the photos is optional equipment and not included in standard package.

Specifications

Model 1440E
Swing over Bed 14"
Swing over Cross Slide 8 3/4"
Swing in Gap 20 3/4"
Distance between Center 40"
Width of Bed 7 9/16"
Spindle Nose D1-4
Spindle Bore 1 9/16"
Taper of Spindle M.T.#5
Spindle Speeds 9 Steps, 82 ~ 2000 RPM
Leadscrew Diameter 15/16"
Leadscrew Pitch 4 TPI
Inch Threads 3 ~ 56 T.P.I (32 kinds)
Metric Threads 0.4mm ~ 7.2mm (30 kinds)
Longitudinal Feed Range 0.0016"~0.03" /rev
Cross Feed Range 0.0008"~0.015" /rev
Cross Slide Travel 6 7/8"
Compound Slide Travel 4"
Tailstock Quill Diameter 1 9/16"
Tailstock Quill Taper M.T. #3
Quill Travel 4 3/8"
Main Motor 3 HP, 220V, 3-phase
Coolant Pump 1/8 HP
Net Weight 1364 lbs
Gross Weight 1584 lbs
Packing Measurement Approx(Lxwxh ) 73"x30"x58"

Included Accessories

  • 6" 3-jaw chuck
  • 8" 4-jaw chuck
  • 4-way tool post
  • Steady rest
  • Follow rest
  • Face plate
  • DRO (SW4000)
  • Chuck cover with safety switch
  • Full length splash guard
  • Coolant system
  • Dead centers
  • Center sleeve
  • Manual & parts list

Optional Accessories

  • 5C Collet Closer with installation: $550
  • 5C Collet Set (1/8" ~ 1" by 16th, 15pcs): $150
  • Taper turning attachment (TTA): $775
