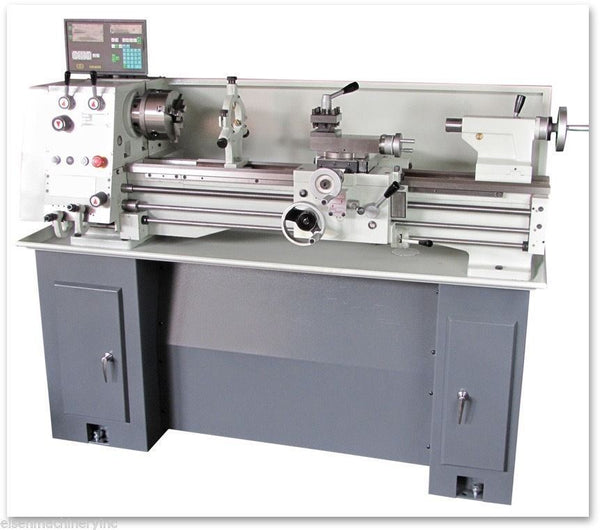

EISEN 1236GH Bench Lathe with DRO,5C Collet ,Stand, Made in Taiwan, 1-Phase 220V

Eisen Machinery Inc


$ 8,800.00


Click here to be notified by email when this product becomes available.


Features

  • INCLUDED IN PACKAGE: Digital readout (DRO) unit with X- and Z-axis optical scales included for ease of operation
  • 5C Collet Closer
  • Hardened and ground bed
  • Hardened and ground cross slide ways
  • Hardened and ground tailstock quill
  • Precision taper roller bearings in headstock.
  • Only world-class spindle bearing brands are used: NACHI, NSK, NTN or FAG.
  • Removable gap
  • The tailstock quill is provided with horizontal locking tang for drilling
  • 12-step speed change
  • 1 9/16” spindle bore diameter
  • D1-4 spindle
  • 1 1/2 HP motor wired 220V, single-phase
  • Thread chasing dial
  • 40 inch threads and 23 metric threads (using change gears)
  • High quality machine. Made in Taiwan

Specifications

Swing over Bed 12”
Swing over Gap 18”
Swing over Cross Slide 6 3/4”
Distance between Centers 36”
Width of Bed 7 1/2”
Spindle Nose D1-4 camlock
Spindle Bore 1 9/16”
Taper of Spindle M.T.#5
Spindle Speed 90 ~ 1600 rpm (12-speed)
Inch Threads 4 ~ 112 TPI (40 settings)
Metric Threads 0.25 ~ 7mm (24 settings)
Cross Slide Travel 6 3/4”
Compound Rest Travel 3 1/2”
Quill Diameter 1 9/16”
Tailstock Quill Taper M.T. #3
Quill Travel 4”
Main Motor 1 1/2 HP, 220V, 1ph
Net Weight 917 lbs (with stand & DRO)
Gross Weight  1025 lbs
Measurement Approx. (LxWxH )  71”x 36”x59” (with stand)

Precision

Spindle nose runout 0.005 mm 0.0002 inch

Included in this package:

  • 6” 3-jaw scroll chuck
  • 8” 4-jaw independent chuck
  • 10” face plate
  • Steady rest
  • Follow rest
  • Change gears
  • 4-way toolpost
  • MT3 x MT5 Center sleeve
  • Dead center
  • Toolbox with tools
  • Floor stand
  • Rear splash guard
  • Digital Read Out (DRO)
  • 5C Collet Closer

* (Free shipping to a customer locate in Commercial area, and have a forklift to unload)
