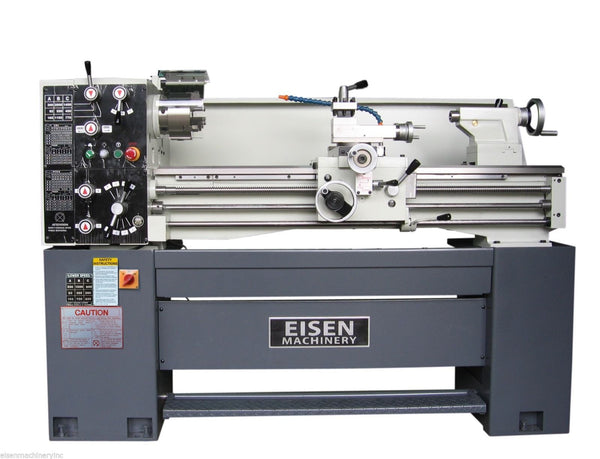

EISEN 1440E 14" x 40" Engine Lathe with DRO, Made in Taiwan, 220V 3PH 4P/8P
Eisen Machinery
$ 10,750.00
is on back order
-NEW- Eisen 1440E Precision Engine Lathe with DRO and 2-speed motor
High quality precision lathe, Made in Taiwan.
2-Speed Motor enables 18 speed steps instead of the regular 9. Low speed is lowered to 40rpm from 80rpm.
Features
- 14" swing x 40" distance between centers
- Hardened and ground bed ways
- Hardened and ground gears in headstock
- D1-4 camlock spindle with 1 9/16" spindle bore
- Two-speed motor provides wide spindle speed range of 40 to 2,000 rpm
- 3 HP main motor
- Precision taper roller bearings in spindle
- Rapid foot-operated brake
- Oil bath headstock, gearbox and apron lubrication
PLEASE NOTE: the taper turning attachment (TTA) shown in the photos is optional equipment and not included in standard package.
Specifications
| Model | 1440E |
| Swing over Bed | 14" |
| Swing over Cross Slide | 8 3/4" |
| Swing in Gap | 20 3/4" |
| Distance between Center | 40" |
| Width of Bed | 7 9/16" |
| Spindle Nose | D1-4 |
| Spindle Bore | 1 9/16" |
| Taper of Spindle | M.T.#5 |
| Spindle Speeds | 18 Steps, 40 ~ 2000 rpm |
| Leadscrew Diameter | 15/16" |
| Leadscrew Pitch | 4 TPI |
| Inch Threads | 3 ~ 56 T.P.I (32 kinds) |
| Metric Threads | 0.4mm ~ 7.2mm (30 kinds) |
| Longitudinal Feed Range | 0.0016"~0.03" /rev |
| Cross Feed Range | 0.0008"~0.015" /rev |
| Cross Slide Travel | 6 7/8" |
| Compound Slide Travel | 4" |
| Tailstock Quill Diameter | 1 9/16" |
| Tailstock Quill Taper | M.T. #3 |
| Quill Travel | 4 3/8" |
| Main Motor | 3 HP, 220/440V, 3-Phase |
| Coolant Pump | 1/8 HP |
| Net Weight | 1364 lbs |
| Gross Weight | 1584 lbs |
| Packing Measurement Approx(Lxwxh ) | 73"x30"x58" |
Included Accessories
- Digital readout (SW4000, glass scales, 5 micron resolution)
- 6" 3-jaw chuck
- 8" 4-jaw chuck
- 4-way tool post
- Steady rest
- Follow rest
- Face plate
- Full length splash guard
- Coolant system
- Dead centers
- Center sleeve
- Manual & parts list
Optional Accessories
- 5C Collet Closer with installation
- 5C Collet Set (1/8" ~ 1" by 16th, 15pcs)
- Taper turning attachment (TTA)
