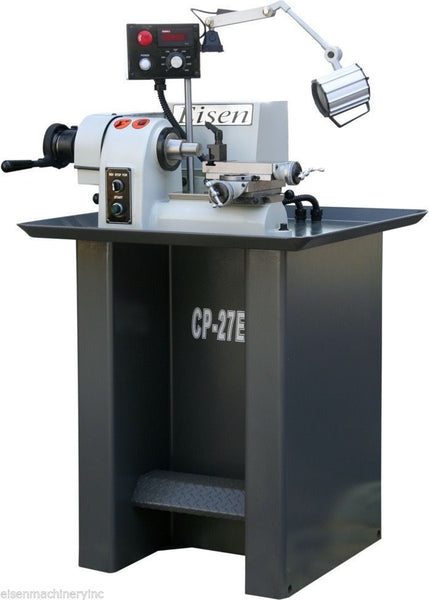

EISEN CP-27EVS Finishing Lathe with Compound Slide / 1HP Speed Lathe
CP-27EVS HIGH PERFORMANCE FINISHING LATHE
Perfect companion for CNC machines or production cells.Small footprintProven design with the same spindle as our super high precision toolroom lathes.Superior surface finish.
- 9" swing over bed
- 1 1/16 (5C) collet capacity
- Fast lever-type collet chucking
- Hardened and ground, precision alloy tool steel bed ways, 9" length
- Spindle mounted on preloaded angular contact ball bearings.
- Capable of high speed speed up to 4000 rpm.
- Quickly change spindle speed with electronic variable speed.
- 1 HP variable frequency drive motor
- Yaskawa variable frequency drive.
SPECIFICATIONS |
CP-27EVS |
Spindle capacity with Chuck |
5” |
Spindle capacity with expanding collets |
3” |
Spindle capacity with round 5C collets |
1 1/16” |
Spindle capacity with Hexagon 5C Collets |
7/8” |
Spindle capacity with Square 5C Collets |
3/4” |
Spindle capacity with Step Chucks |
1 1/16” ~ 6” |
Spindle Nose Diameter |
2 3/16” |
Spindle Nose I.D./ O.D. |
5C (10 ̊) / 4 ̊ Taper |
Spindle Speeds (Variable) Inverter |
0 ~ 4000 rpm |
Spindle Motor |
1 HP |
Bar Stock Diameter (5C Collet) |
1 1/16” |
Swing Over Bed |
9” |
Coolant Pump |
Optional |
Net Weight (Approx.) |
660 lbs. |
Gross Weight (Approx.) |
820 lbs. |
Machine Dimensions (LxWxH) |
36”x36”x55” |
Freight Shipping
If you need a shipping quotation, please let us know: 1) The zip code for your shipping address 2) Do you have forklift or loading dock to unload?
Note: We ship from Ontario California 91761.
