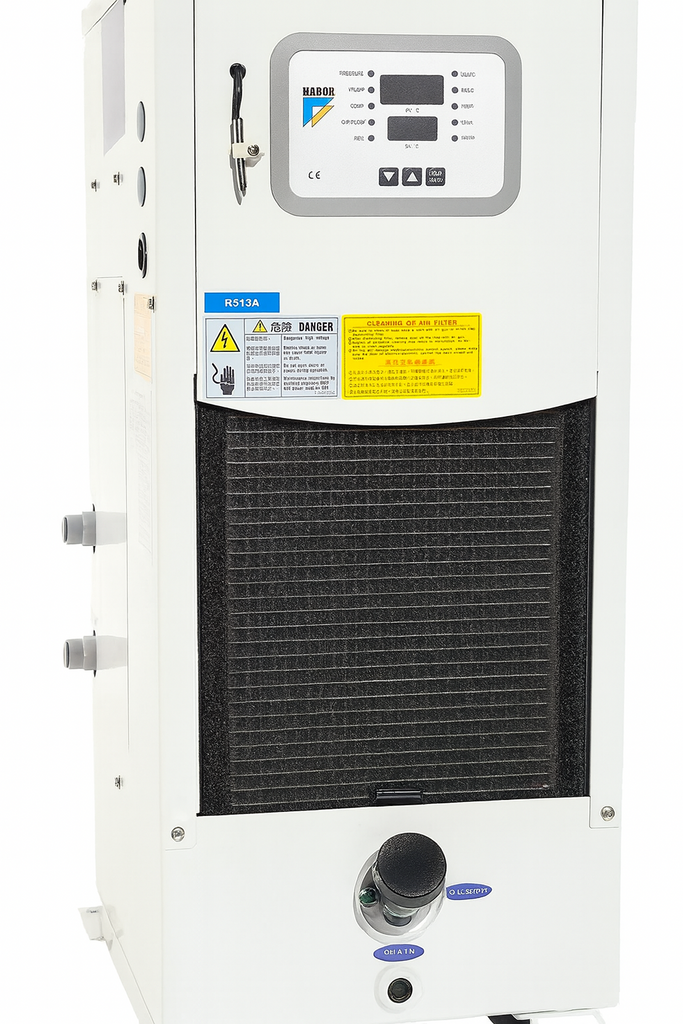

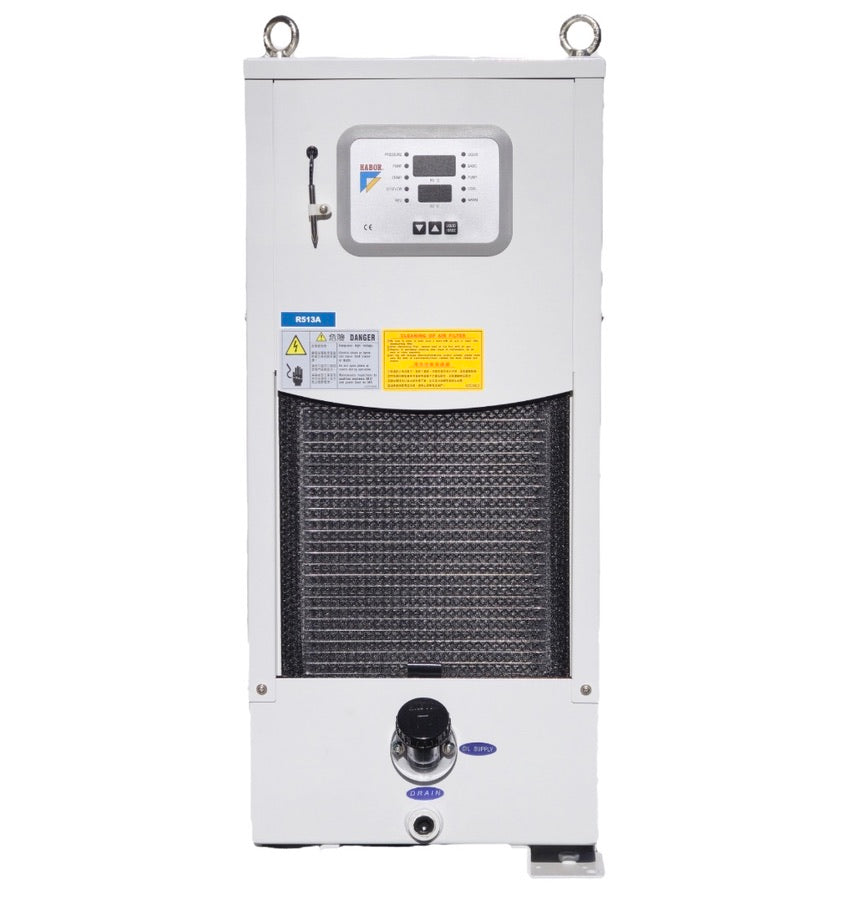

Oil Chiller for CNC, 4000 BTU, HABOR HBO-250PTSB9, 220V, 3PH with R-513A

Commonly used on CNC machining centers to cool spindle oil, hydraulic oil, or lubrication oil.

NOTE: We can convert this unit to the HABOR HBO-250PTSBM9 on request. The M variant includes an external sensor that traces temperature at the machine body casting.

HABOR Oil Chiller Model: HBO-250PTSB9

Note: HBO-250PTSB9 is the new, more compact version of the HBO-250PTSB3 model.

Benefits:

• Suitable for chilling machining center spindle oil, hydraulic oil, or lubrication oil
• Stabilizes temperature and improves cutting accuracy
• Prolongs machine life
• Simple operation and low noise
• Uses R-513A refrigerant with low Global Warming Potential (GWP ~573)

Specifications

• Model: HBO-250PTSB9
• Cooling capacity: 1000 kcal/hour, 1170 watt, 4000 BTU/hour

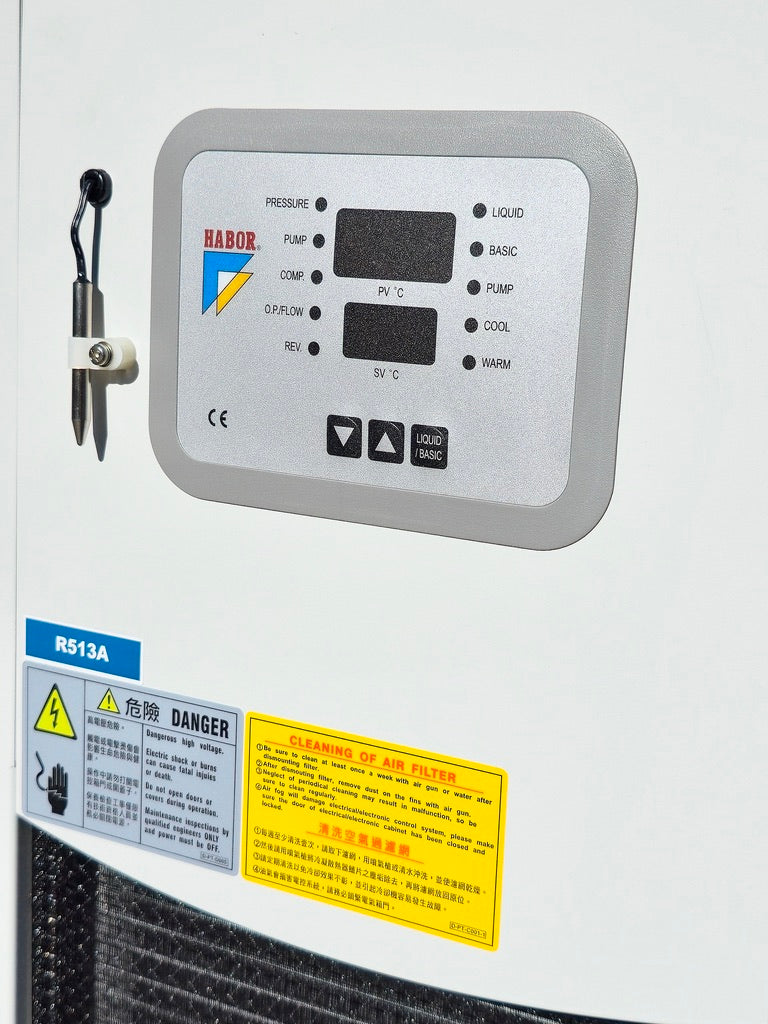

• Temperature control: Differential temperature control (traces ambient temperature, setting range -10°C ~ +10°C)
• Usage range: Ambient temperature 10~40°C, Oil temperature 10~45°C
• Power input: 3PH 200~230V 60Hz
• Compressor motor: 478 W
• Fan motor: 200 W
• Pump: 200 W
• Pump flow rate: 4.5 liter/min

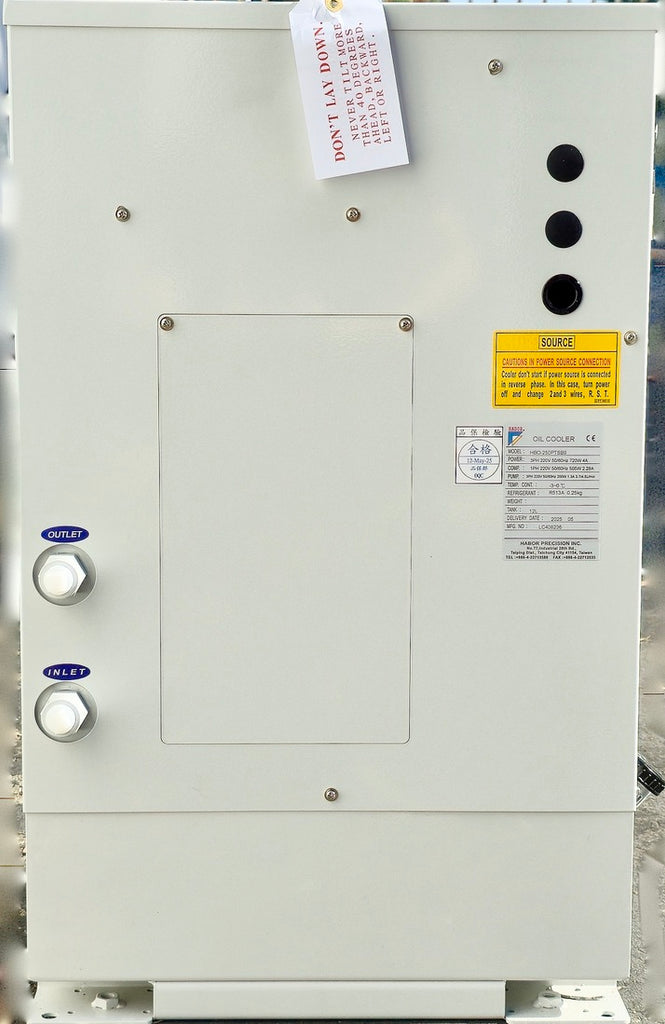

• Inlet size: 1/2" PT
• Outlet size: 1/2" PT
• Max. pressure loss of oil outlet: 3.0 kgf/cm²
• Oil viscosity requirement: Hydraulic oil and lubrication oil VG6 ~ VG32 (4~300 cSt)
• Refrigerant: R-513A, 0.3 kg
• Tank capacity: 12 liters (3.17 gallons)

Oil Type Requirements

This unit accepts mineral hydraulic oil and lubrication oil.

Do not use:

• Phosphate, chlorinated hydrocarbon, or fire-resistant hydraulic oil (e.g., water/glycol oil, W/O or O/W emulsion oil)
• Cutting oil, grinding oil, or water-soluble liquid
• Foodstuff, medicine, or strongly corrosive liquids
• Gasoline, kerosene, or organic solvents

Oil Viscosity

Recommended oil viscosity: 4 to 300 cSt.

As a general guide:

• If oil is between 10 to 40°C → ISO VG5 to ISO VG32 can be used
• If oil is between 20 to 40°C → ISO VG5 to ISO VG68 can be used
