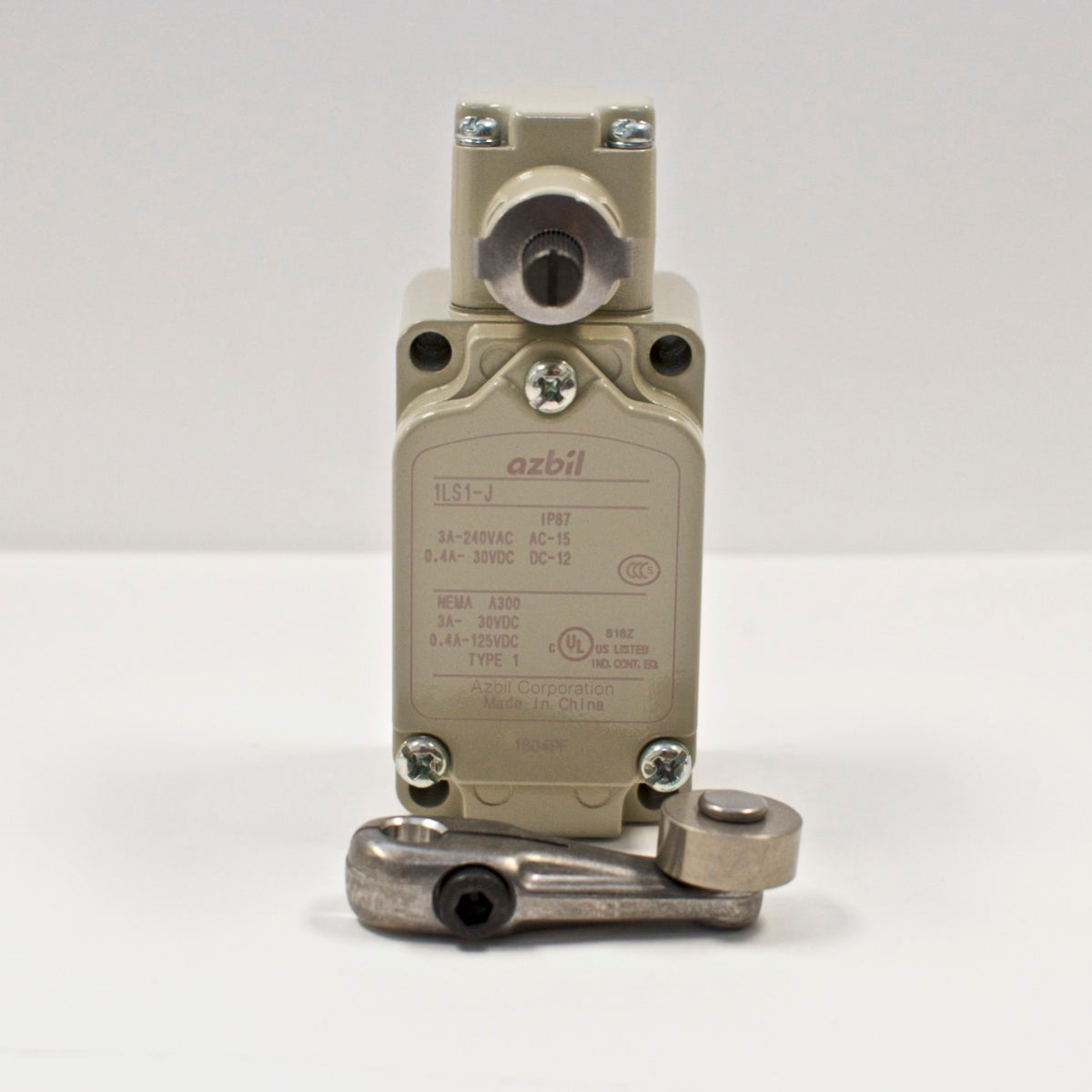

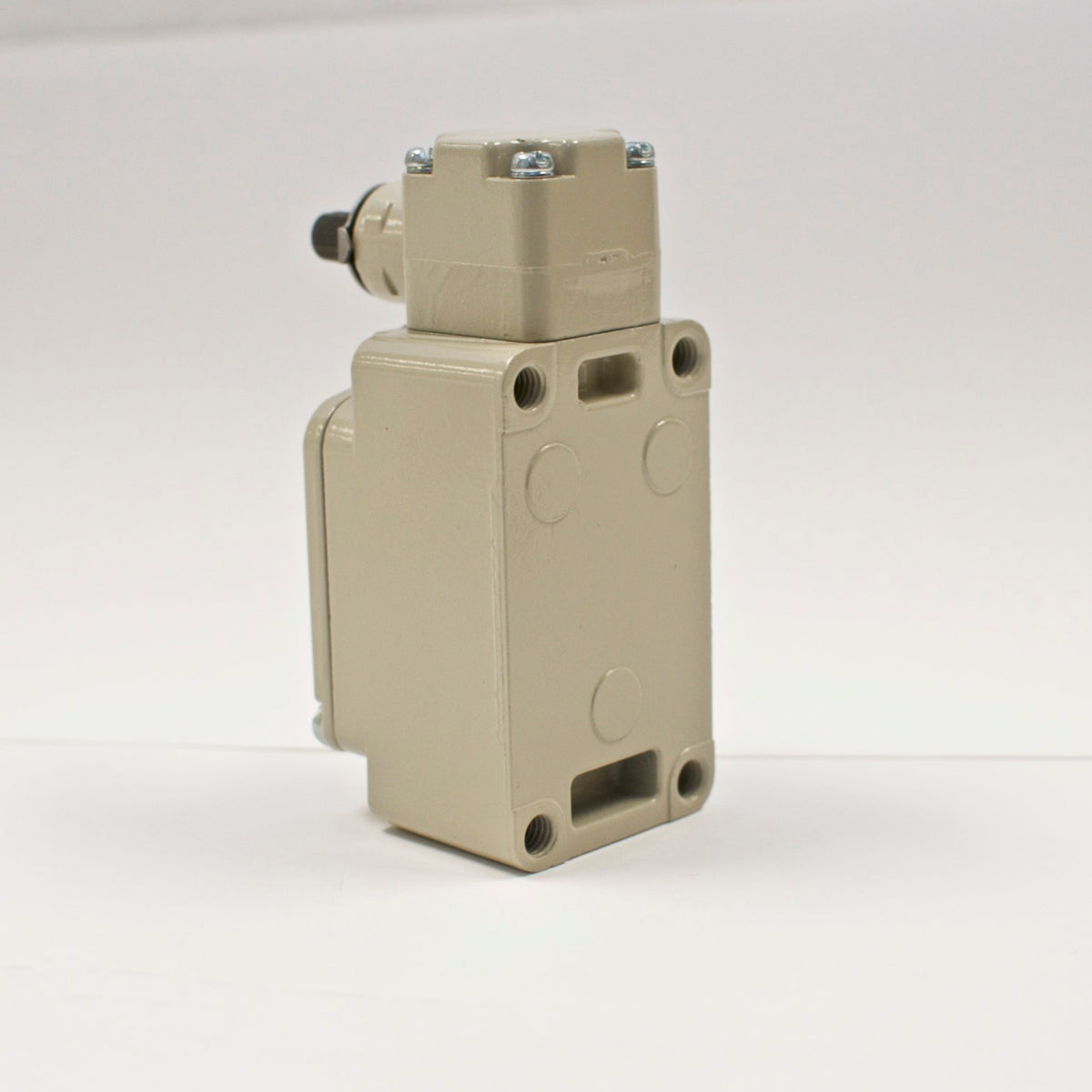

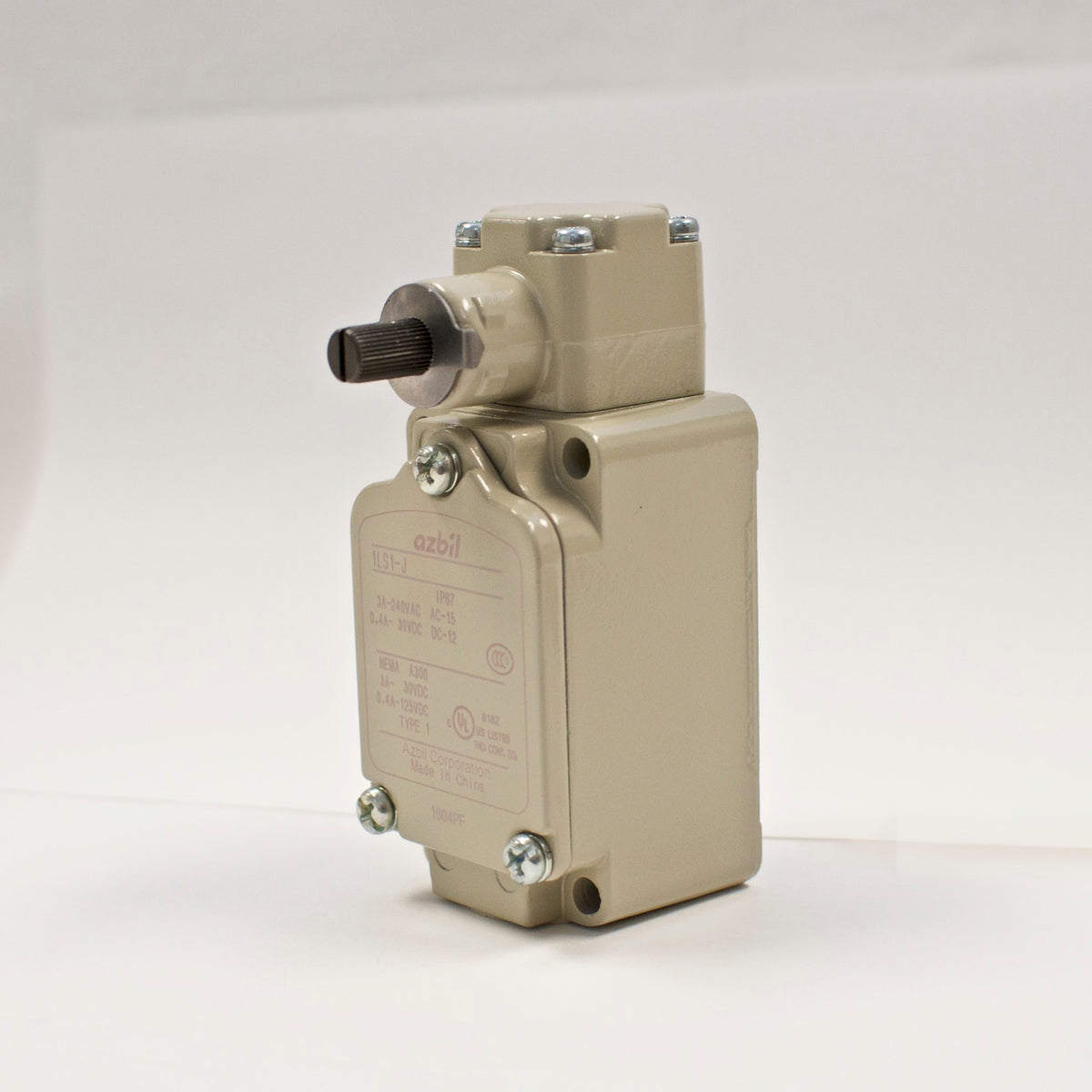

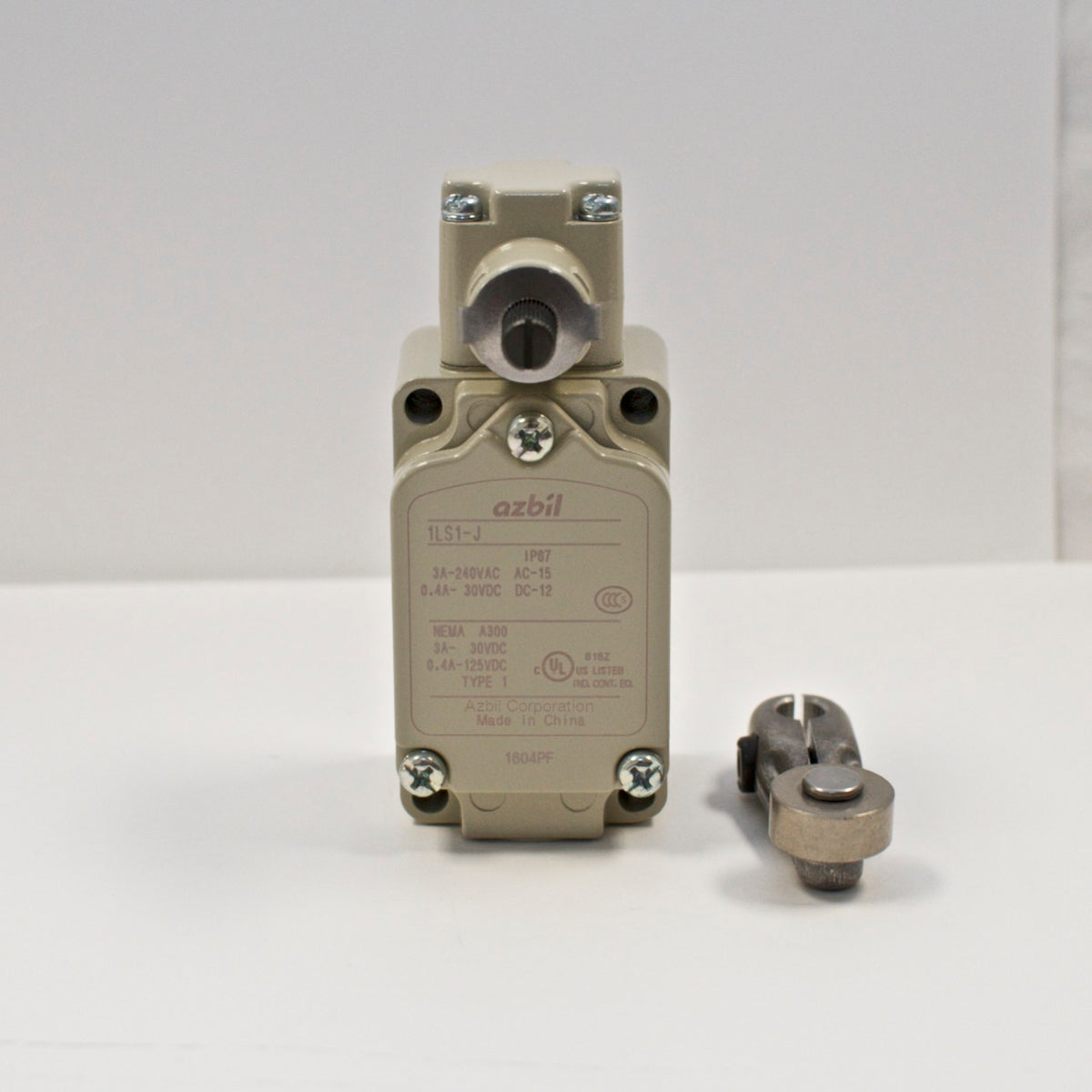

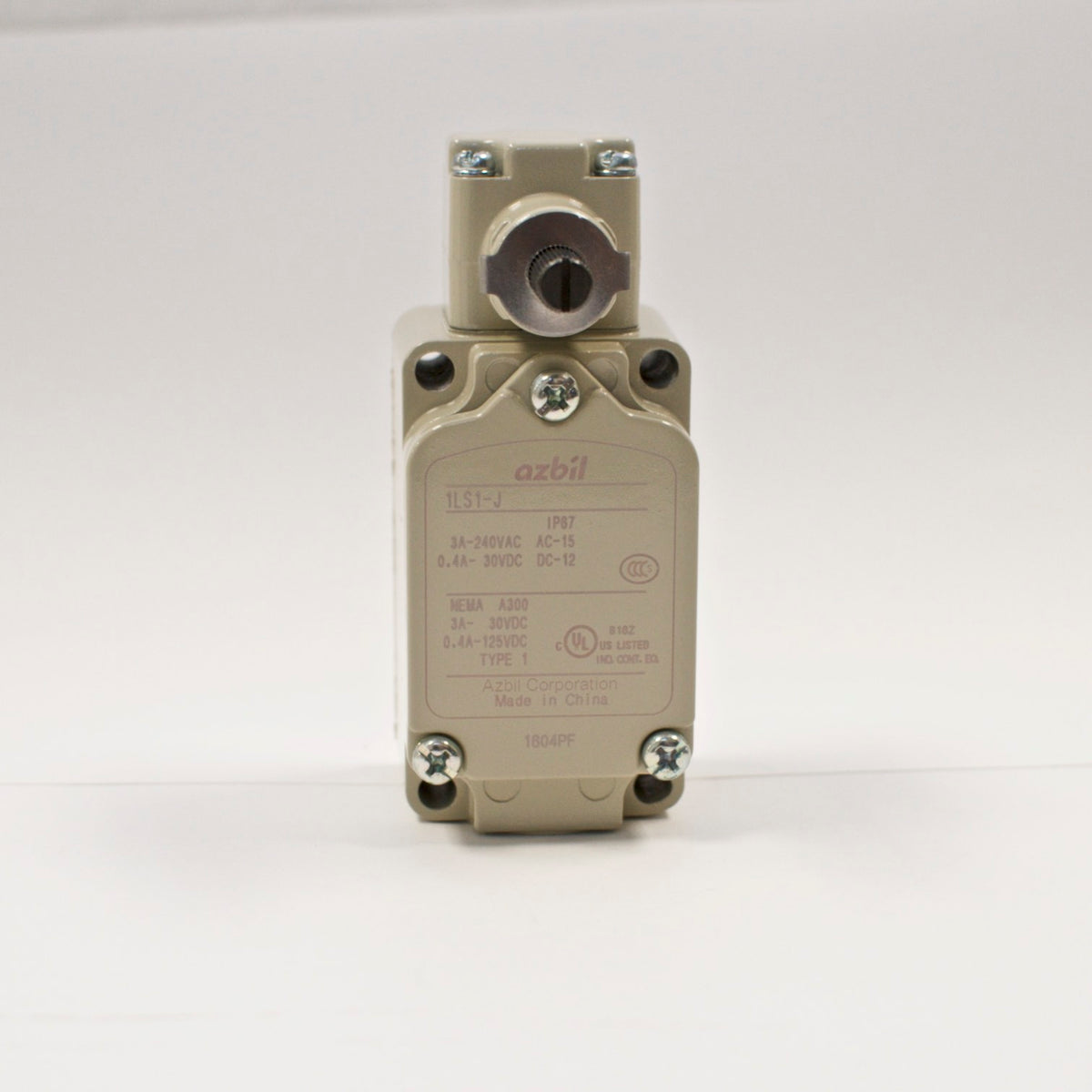

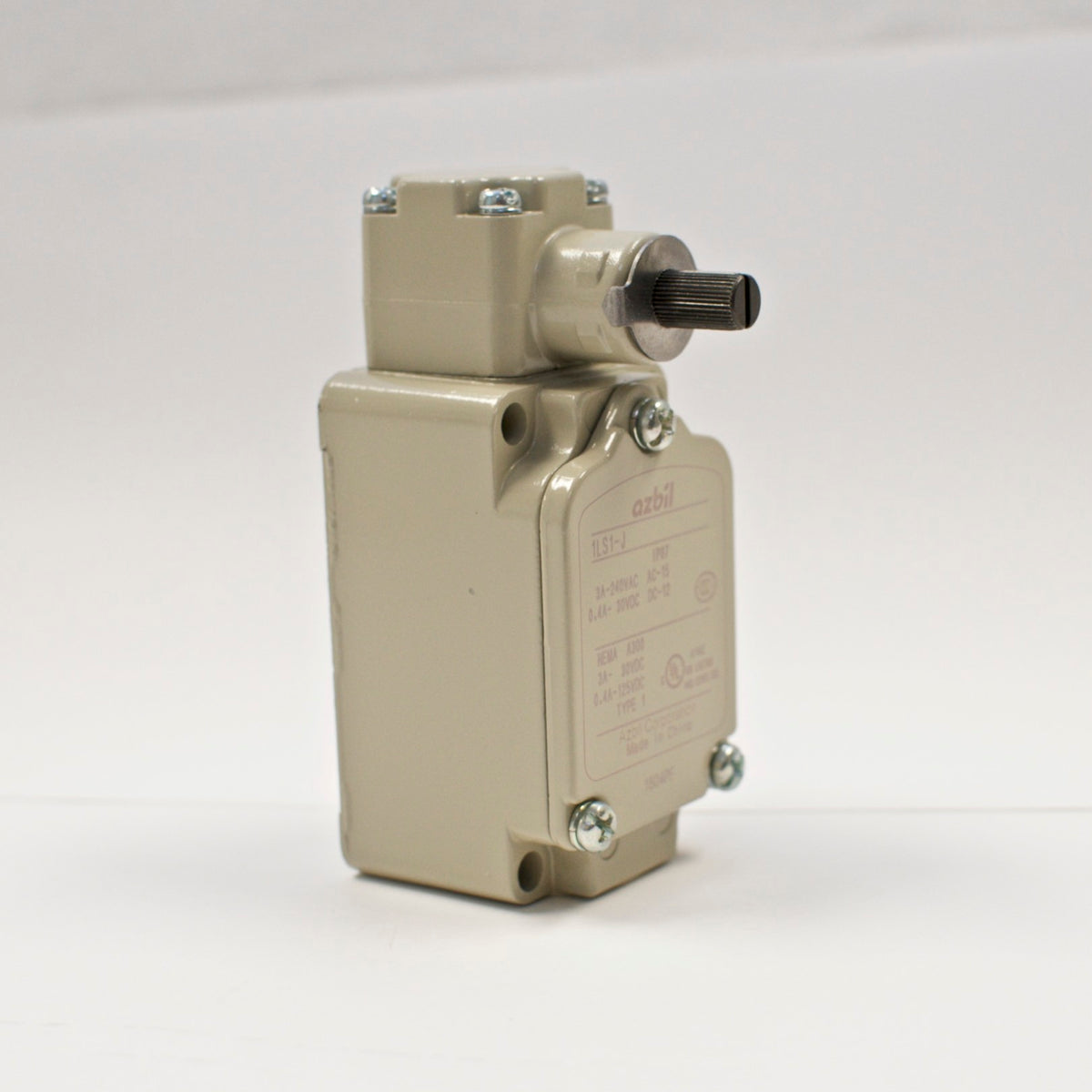

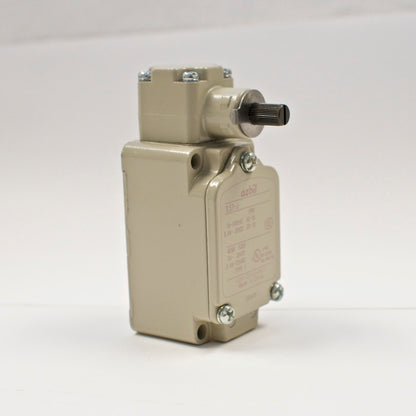

Azbil 1LS1-J limit switch, Roller Lever Type (Yamatake)

Azbil 1LS1-J limit switch, Roller Lever Type (Yamatake)

General Purpose limit switches with robust construction 1n a extensive range of models for use in a wide variety of applications.

Features :

• UL/CSA/CE/CCC certified

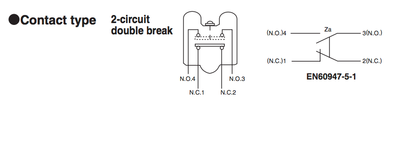

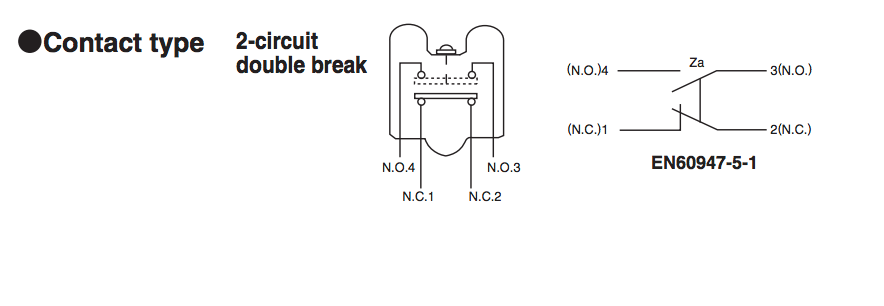

• 2-circuit double break basic switch with rugged diecast aluminum case
• Oil, Water and Dust-proof structure
• Wide range of of models includes double-sealed, corrosion resistant, heat-resistant and spatter-guarded types.
• Operation position setting indicator.

P/N   :  1LS1-J

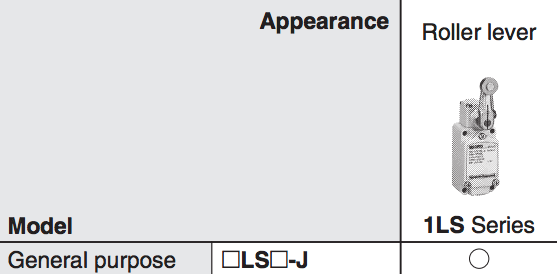

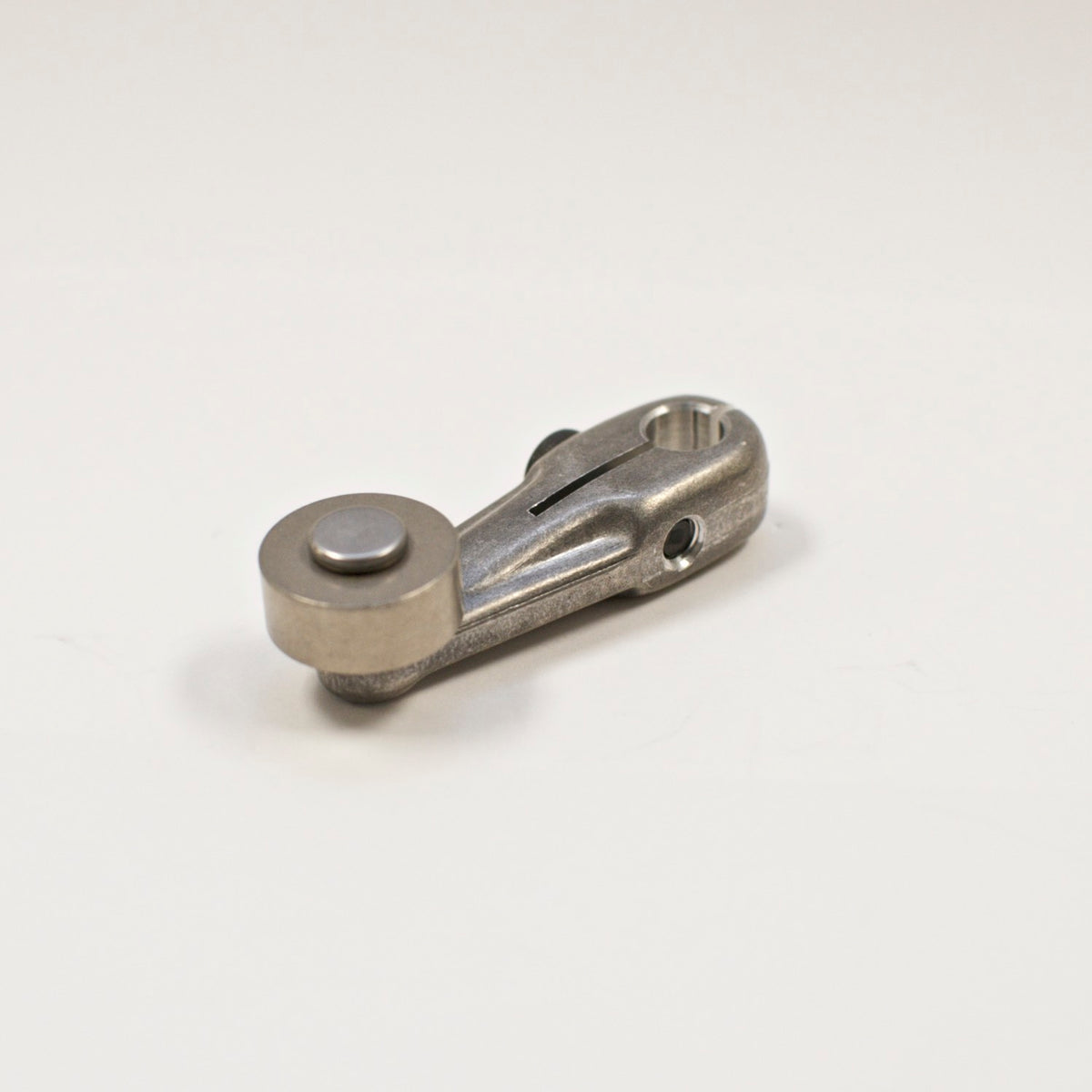

Type : Roller Lever

Contact Voltage/min.current : 24V 10 mA, 12V 20 MA(standard load) 5V 10mA (low current load)

120/240 VAC, 30 Vdc

Allowable operating speed Min. 0.5 mm/s max.0.5 m/s

Maximum operating force : 13.4 N
