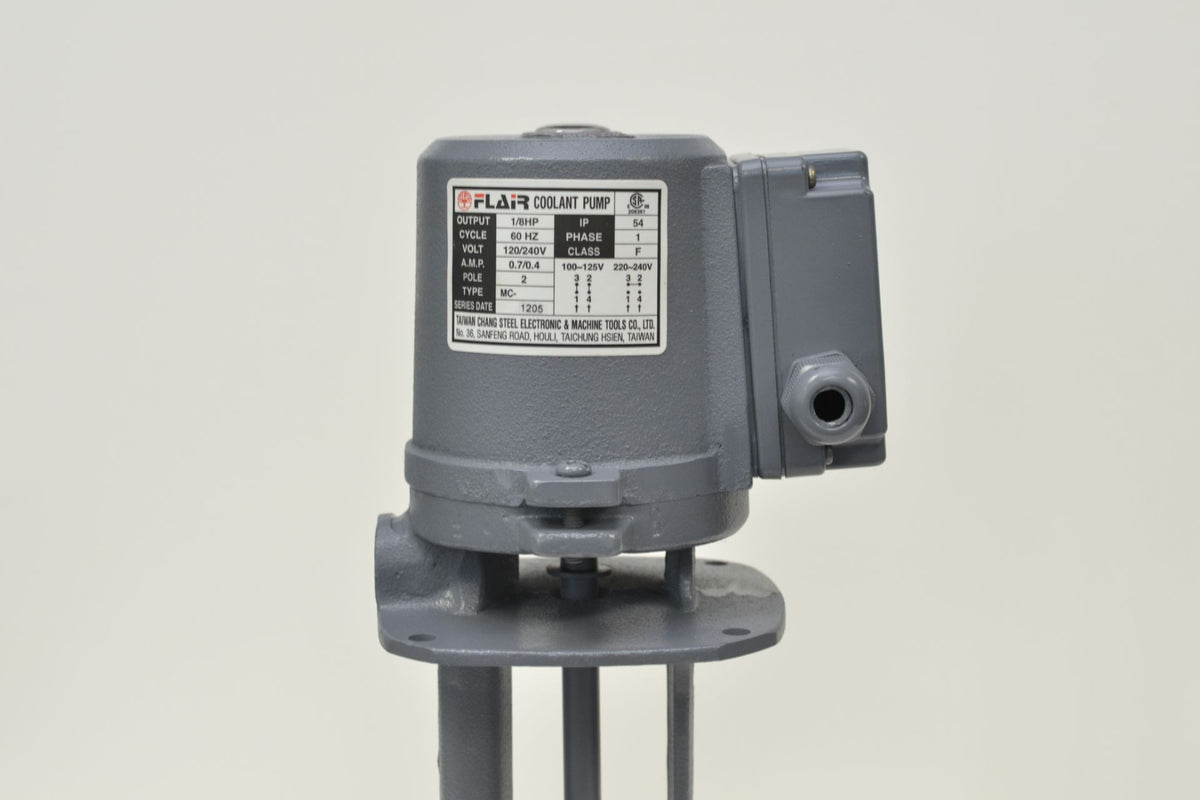

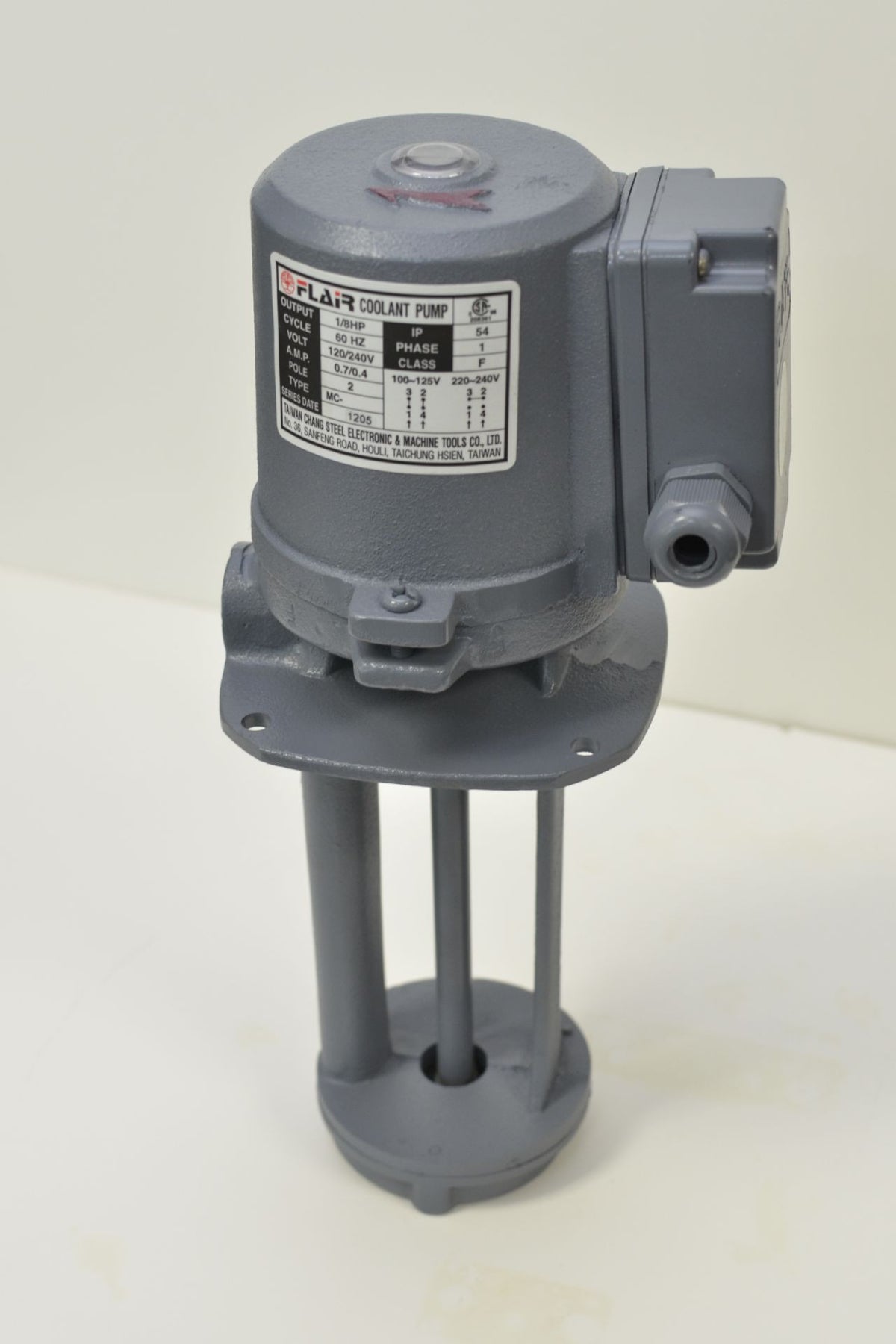

This in-tank coolant pump is suitable replacement for many coolant pumps used on lathes, milling machines, grinders and other machinery.
The square-shaped mounting plate has 4 holes. The center to center distance for the holes is 90mm. A quick comparison with your coolant pump would determine if it'll fit.
Coolant output connection is NPT female 3/8" pipe size.

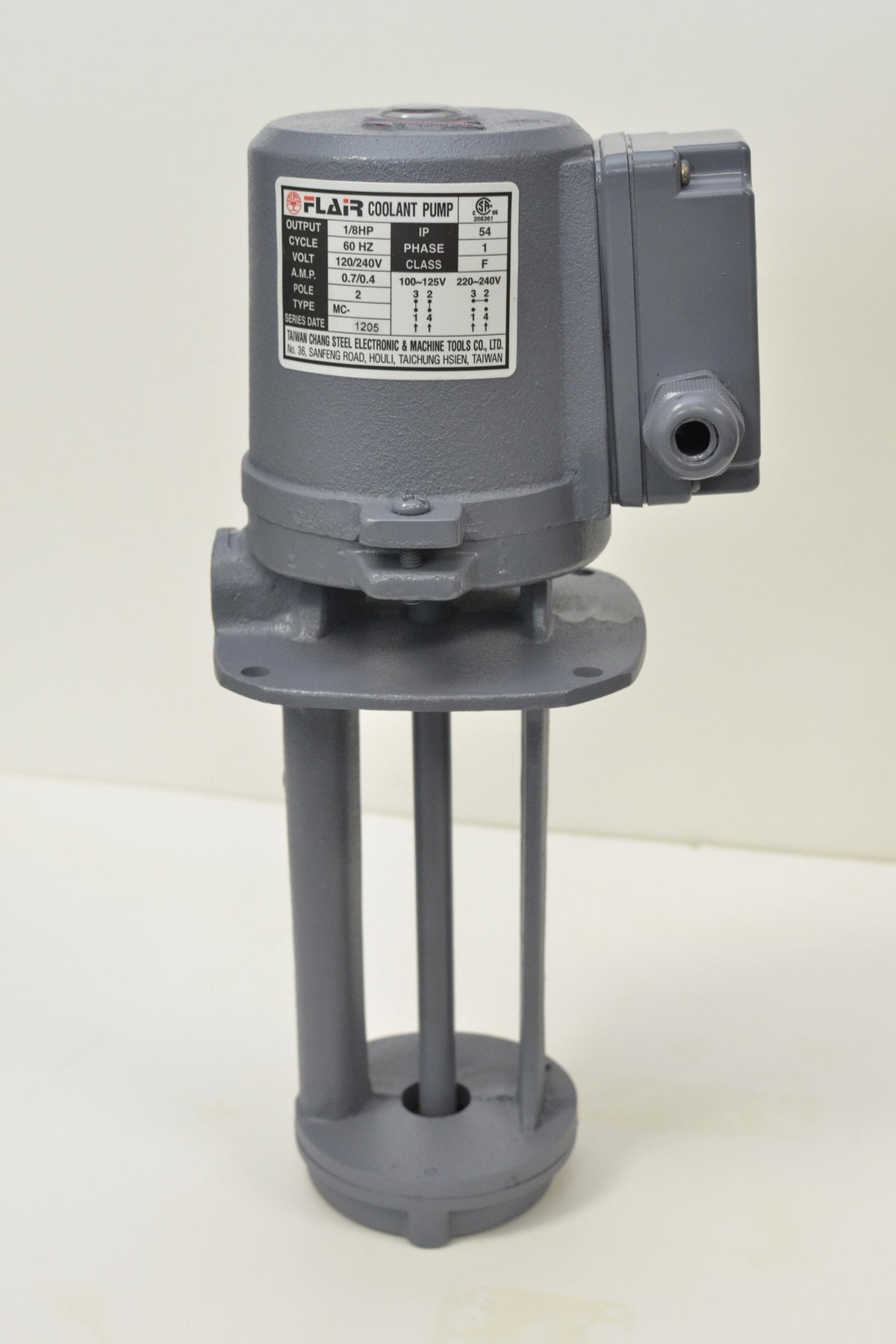

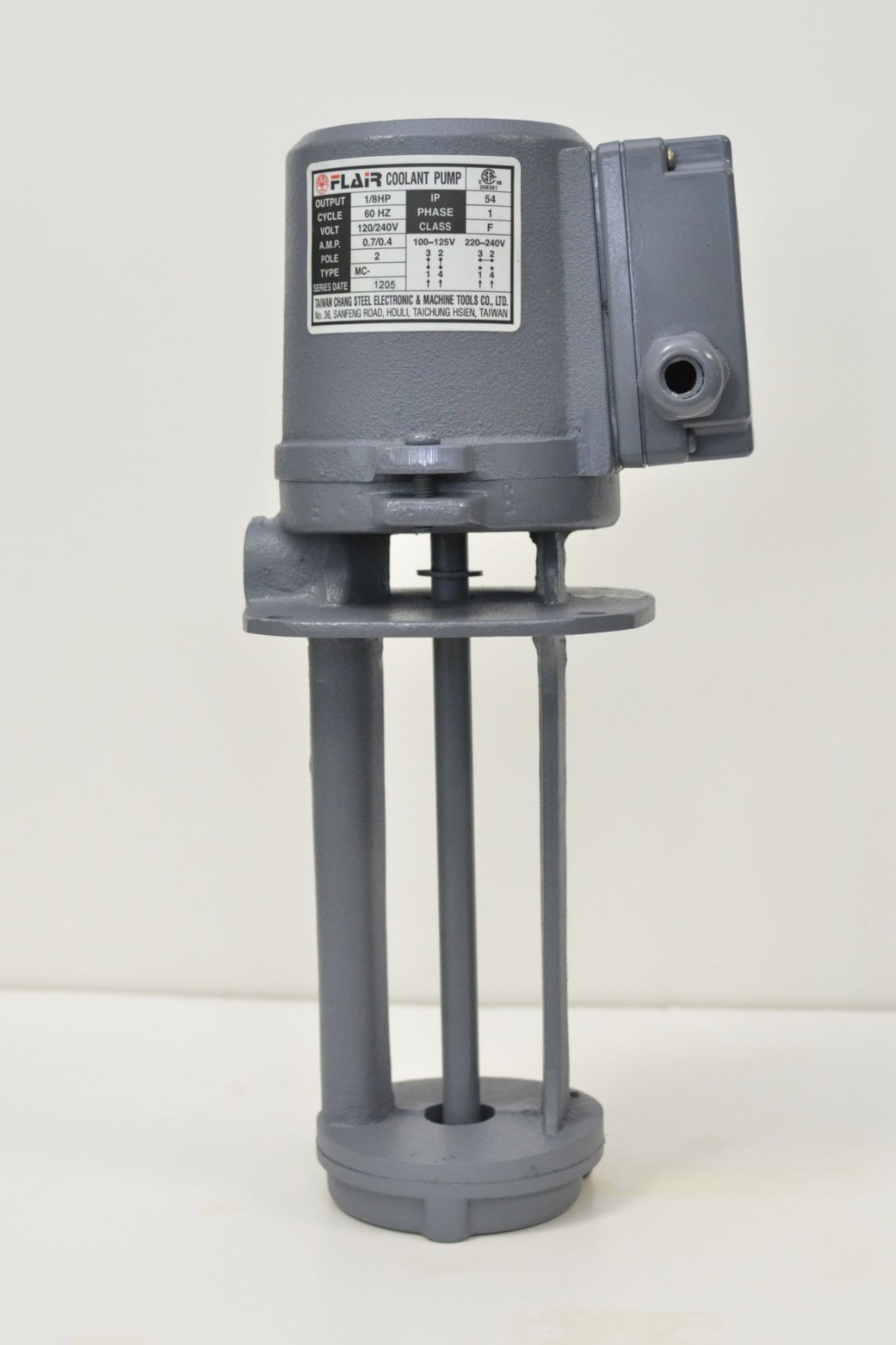

Shaft length (the section immersed in coolant tank) is 180mm (7").

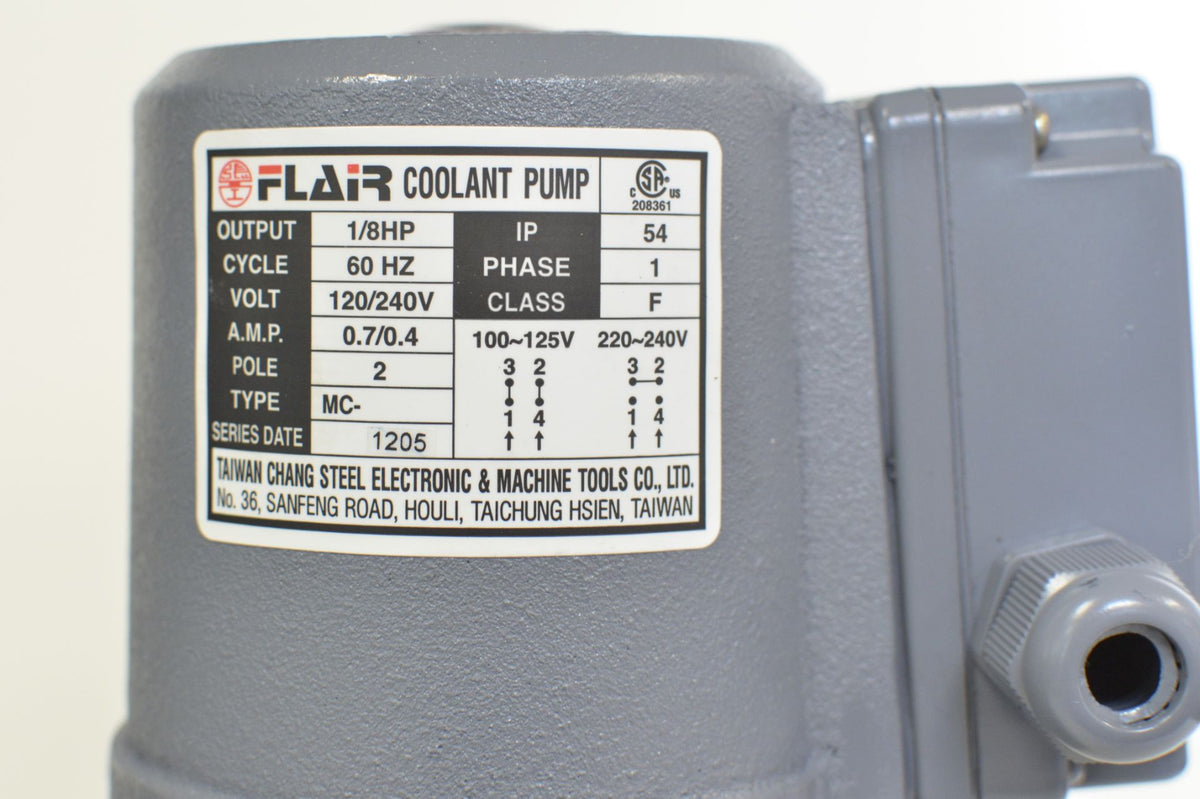

110/220V SINGLE-PHASE
Flow rate : 8.2 GPM (31 liter/min)
Lift : 17 ft (5.2 meter)
Please note the coolant pump come with WHITE, GREY or BLACK paint depending on the batch we get.
Made in Taiwan.
