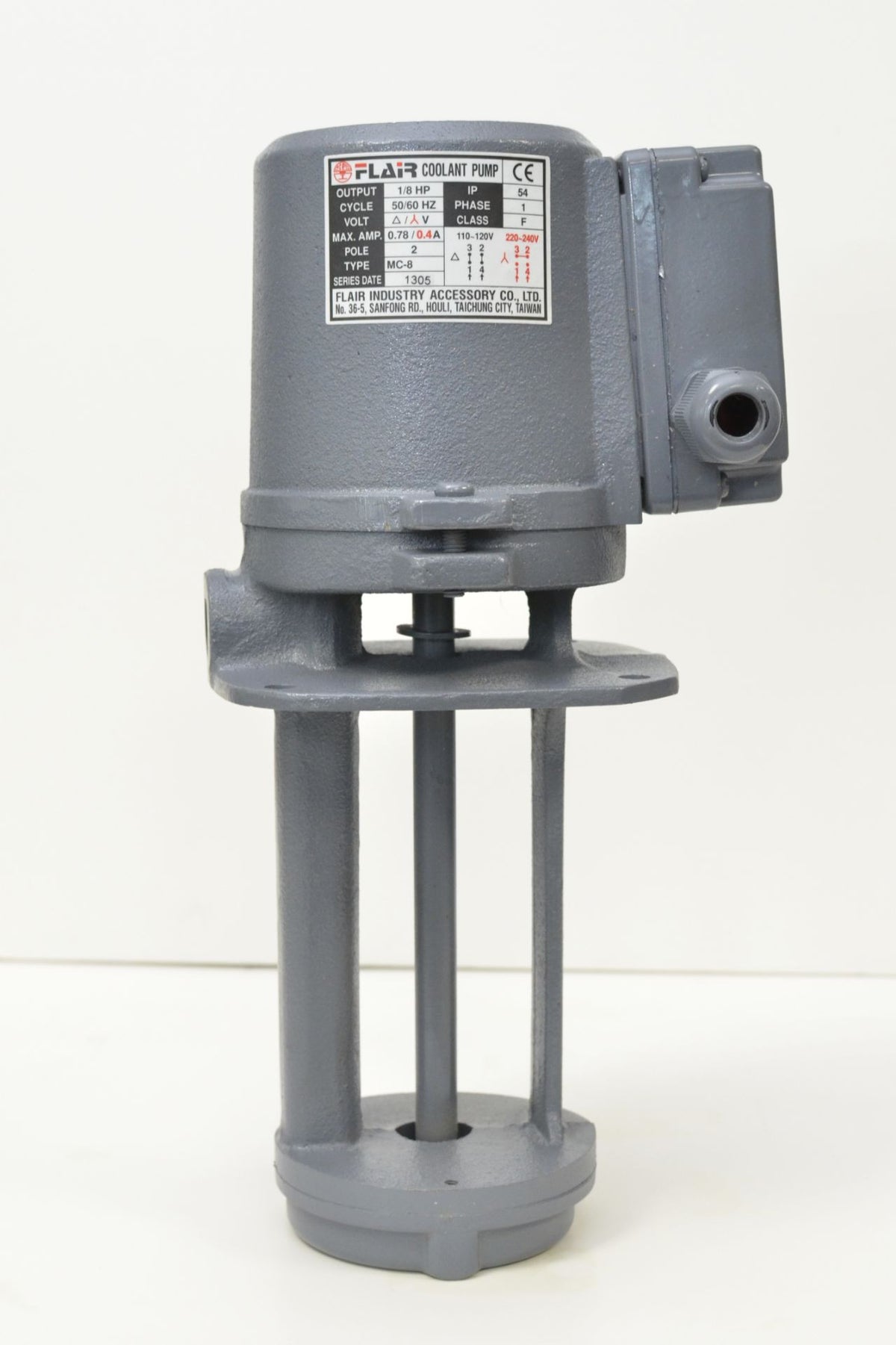

1/8 HP SINGLE-PHASE Cast Iron Immersion-Type Coolant Pump
This in-tank coolant pump is suitable replacement for many coolant
pumps used on lathes, milling machines, grinders and other machinery.
The square-shaped mounting plate has 4 holes. The center to center
distance for the holes is 90mm. A quick comparison with your coolant
pump would determine if it'll fit.
Coolant output connection is NPT female 3/8" pipe size.
Shaft length (the section immersed in coolant tank) is 130mm (5").

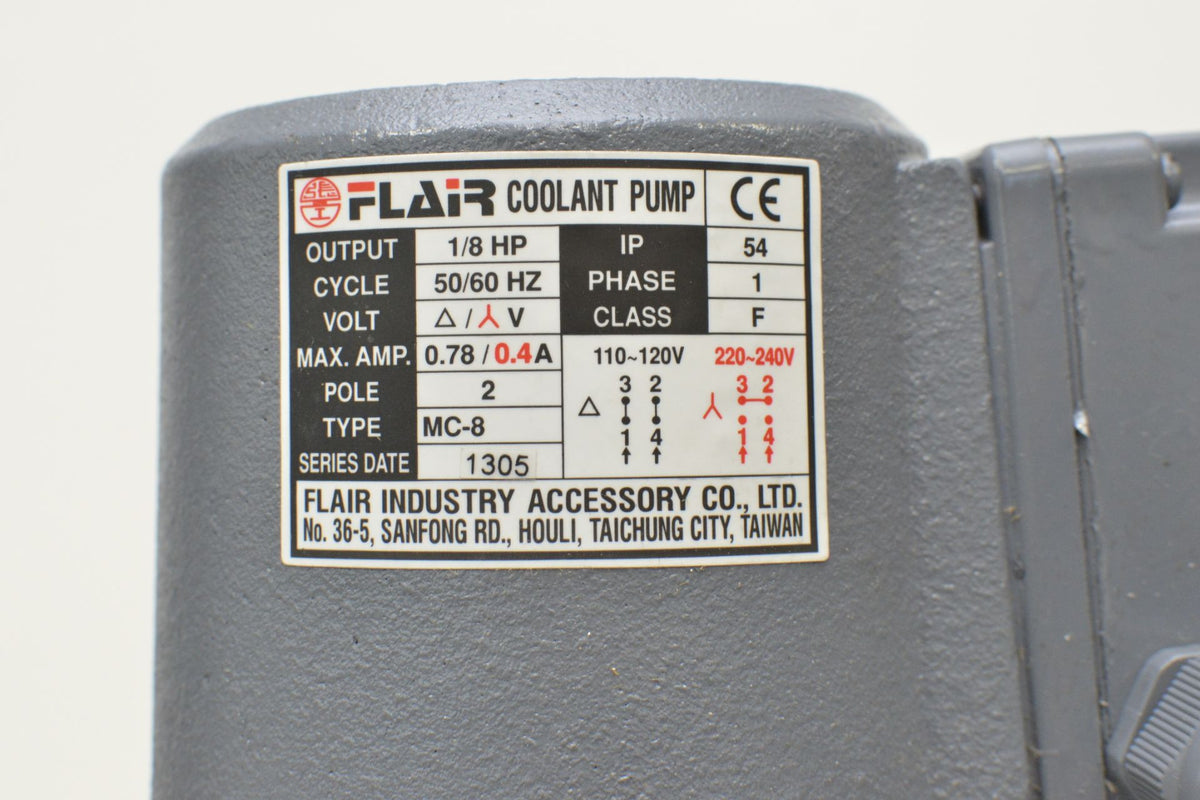

110/220V SINGLE-PHASE
Flow rate 8.2 GPM (31 liter/min)
Lift: 17 ft (5.2 meter)
Has CE marking
Made in Taiwan.
Please note the coolant pump come with WHITE, GREY or BLACK paint
depending on the batch we get.
