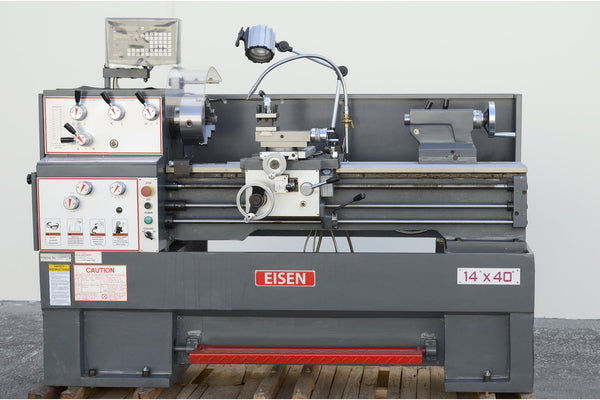

EISEN 1440K Precision Engine Lathe with DRO

$ 7,250.00 $ 8,781.25

1440K Precision Gap-Bed Lathe

NEW we have a video of 1440K lathe cutting:

Key Features

1440K Lathe Specifications

Swing over Bed	14”
Swing over Cross Slide	8 1/2”
Swing through Gap	20”
Length of Gap	9 3/8”
Distance between Centers	40”
Hole through Spindle	1 1/2”
Spindle Nose	D1-4
Taper in Spindle Nose	MT-5
Spindle Taper Adapter	MT-3
Spindle Bearing Type	Tapered Roller Bearings
Number of Spindle Speeds	12
Range of Spindle Speeds	40 ~ 1800 rpm
Range of Longitudinal Feeds	0.0012” ~ 0.0294”
Range of Cross Feeds	0.0003” ~ 0.0100”
Number of Inch Threads	40
Range of Inch Threads	4 ~ 112 TPI
Number of Metric Threads	22
Range of Metric Threads	0.45 ~ 7.5mm
Leadscrew	7/8” x 49 1/2”
Feed Rod Diameter	3/4”
Maximum Tool Size	5/8” x 5/8”
Maximum Compound Slide Travel	3 1/2”
Maximum Cross Slide Travel	6 3/8”
Maximum Carriage Travel	37 1/2”
Tailstock Spindle Travel	4 3/4”
Diameter of Tailstock Quill	1 25/32”
Tailstock Quill Taper	MT-3
Overall Dimensions	76” L x 30” W x 48”
Main Motor	3HP 3ph, 220V/440V, prewired 220V
Shipping Weight	2491 lbs

Included Accessories in Special eBay Package

6" top-reversible 3-jaw chuck (Please note: pictures shown have 8" 3-jaw chuck. You can change from 6" to 8" 3-jaw chuck for $20 additional)
8" 4-jaw chuck
4-way tool post
Steady rest
Follow rest
Micro carriage stop
DRO system SINO brand
Work light
Coolant system
Foot brake
Center sleeve and centers
Toolbox
Manual

Optional Accessories

Taper turning attachment $375

Questions?

If you have any questions regarding this item, please let us know we'll be happy to help.

You can also reach us at Eisen Machinery toll free 877-626-7285.
